Installation

A750F AUTOMATIC TRANSMISSION: TRANSMISSION CONTROL CABLE: INSTALLATION

INSTALLATION

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

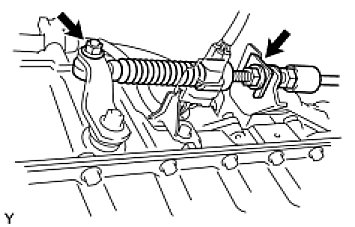

(a) Connect the control cable to the transmission with the nut and a new clip.
Torque: 14 Nm (143 kgf-cm, 10 ft-lbf)

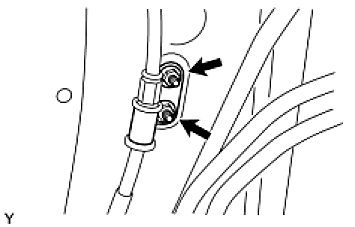

(b) Connect the control cable to the body with the 2 nuts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)

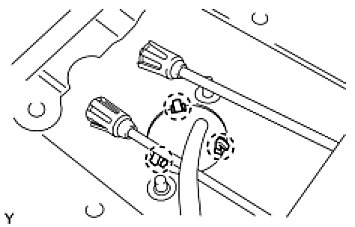

(c) Engage the 3 claws to connect the control cable.

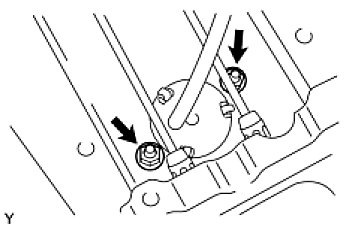

(d) Connect the control cable to the body with the 2 nuts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)

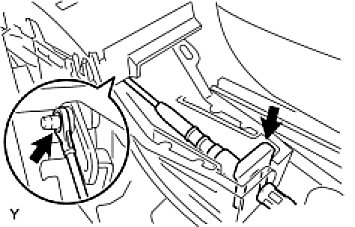

(e) Connect the control cable with a new lock clip.
2. REMOVE FRONT CONSOLE BOX Installation

3. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY Installation

4. REMOVE PARKING BRAKE HOLE COVER SUB-ASSEMBLY Installation
