Alignment: Specifications



Wheel Alignment Specifications

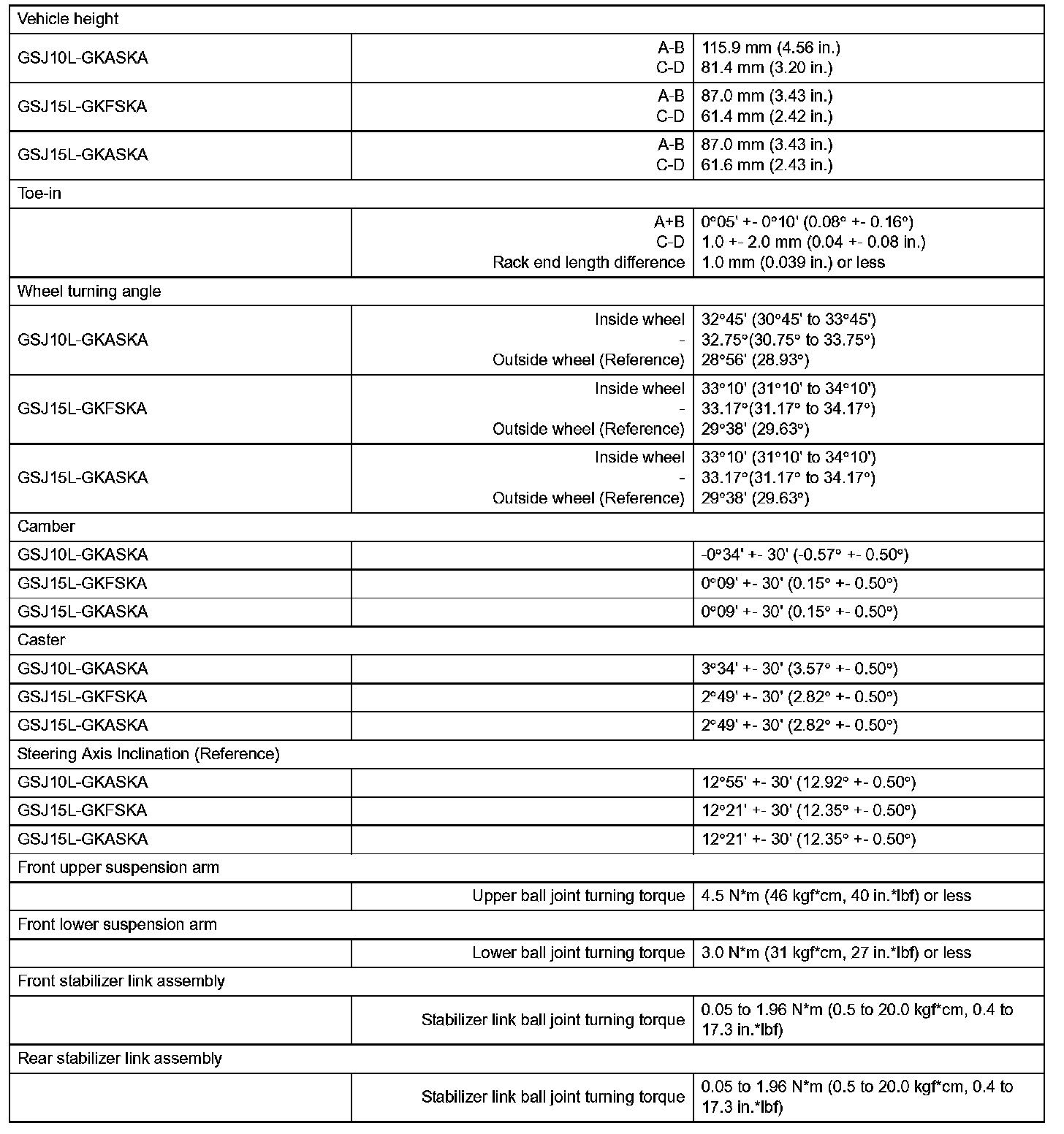

Suspension Service Data:

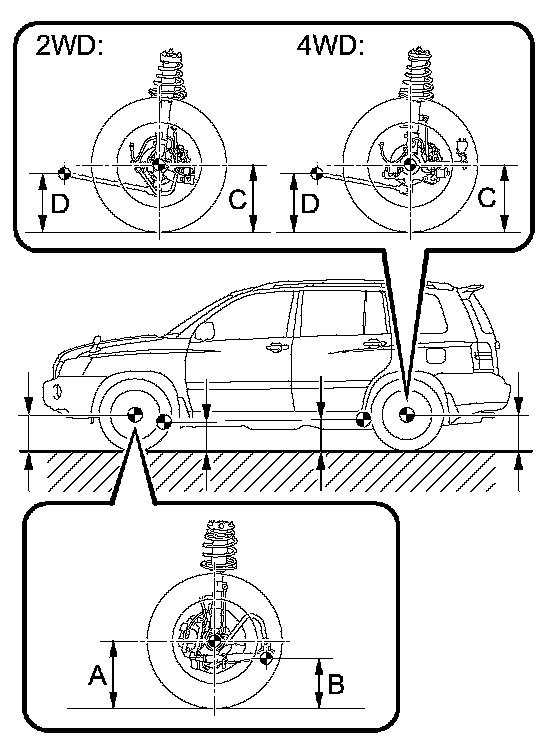

Vehicle Height:

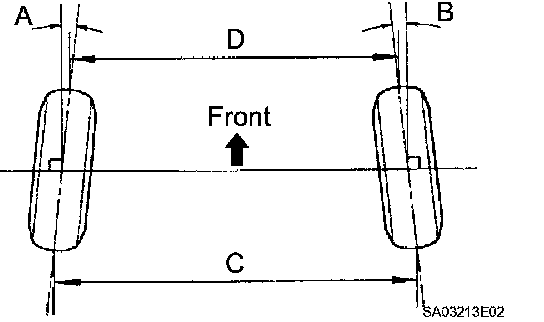

Toe-in:
