Reassembly

1GR-FE STARTING: STARTER: REASSEMBLY

REASSEMBLY

1. INSTALL STARTER ARMATURE ASSEMBLY
(a) Apply grease to the bearings, and install them onto the stater yoke.
2. INSTALL STARTER BRUSH HOLDER ASSEMBLY
(a) Install the a new O-ring onto the groove of the starter yoke assembly.
(b) Place the brush holder on the armature.

(d) Install the commutator end frame with the 2 screws.
Torque: 3.8 Nm (39 kgf-cm, 34 in-lbf)
3. INSTALL MAGNET STARTER SWITCH ASSEMBLY
(a) Apply grease to the steel ball, and install it onto the clutch shaft hole.

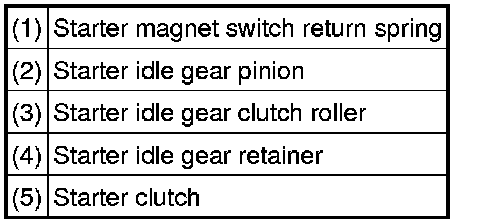

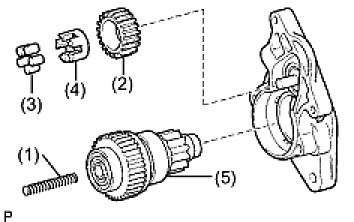

(b) Apply grease to parts (2) to (5), and install all the parts below onto the starter drive housing.

(c) Install the magnet starter switch with the 2 screws.
Torque: 9.3 Nm (95 kgf-cm, 82 in-lbf)
4. INSTALL STARTER YOKE ASSEMBLY
(a) Install a new O-ring onto the groove of the starter yoke.

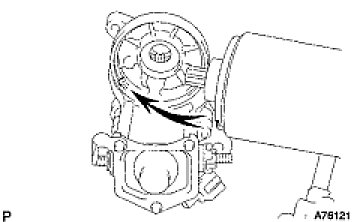

(b) Align the key of the starter yoke with the groove of the magnet starter switch.

(c) Install the starter yoke and armature with the 2 through bolts.
Torque: 9.3 Nm (95 kgf-cm, 82 in-lbf)
(d) Connect the lead wire to terminal C with the nut.
Torque: 5.9 Nm (60 kgf-cm, 52 in-lbf)
