A750F AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH:
INSPECTION
1.

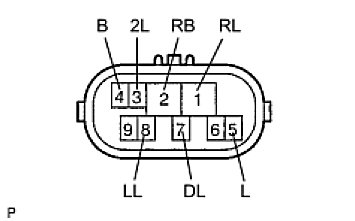

INSPECT PARK/NEUTRAL POSITION SWITCH
(a)

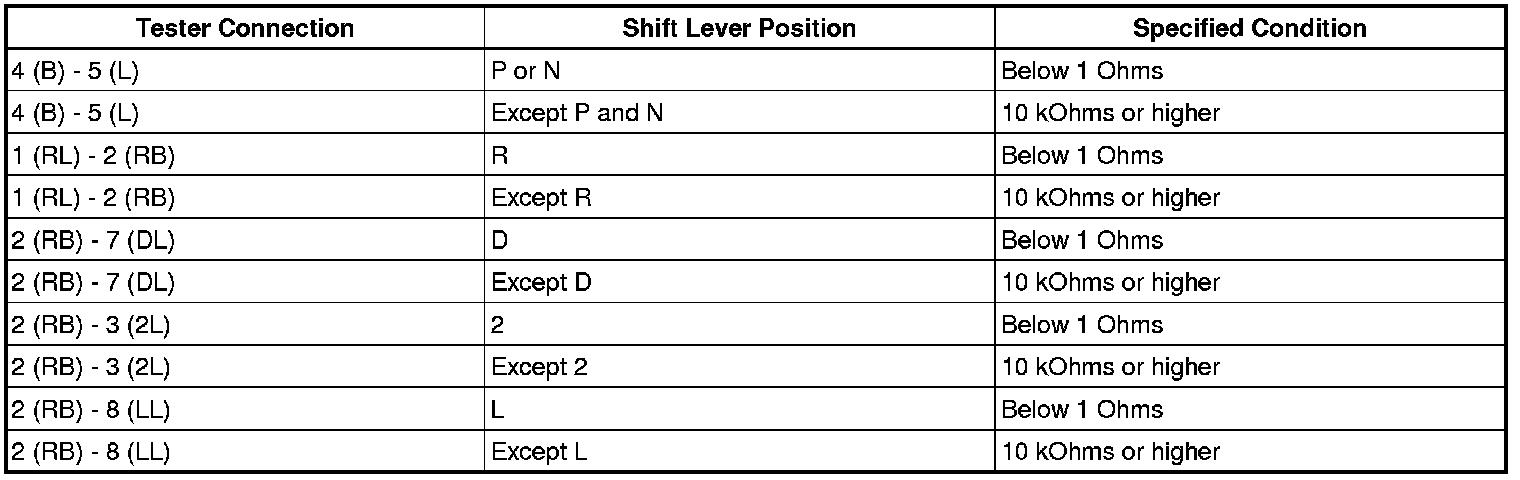

Measure the resistance of the PNP switch when the shift lever is moved to each position.
Standard resistance:
