Toyota Truck
>>
2008
>>
FJ Cruiser 4WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Component Tightening Specifications and Sequences
>>
Flywheel / Flex Plate
Flywheel / Flex Plate

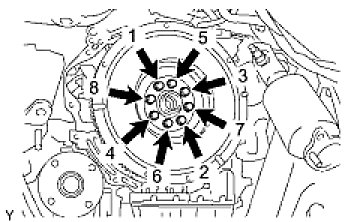

Flexplate, A/T
Torque: 83 Nm (846 kgf-cm, 61 ft-lbf)

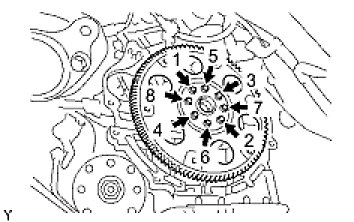

Flywheel, M/T
Torque: 83 Nm (846 kgf-cm, 61 ft-lbf)
