Cylinder Head
Cylinder HeadLH

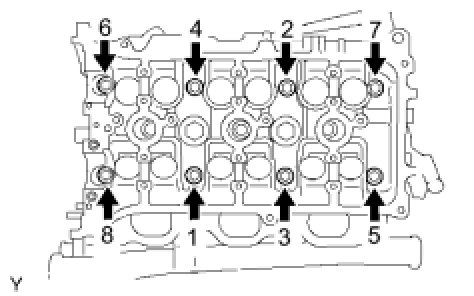

Recessed head 1st
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)

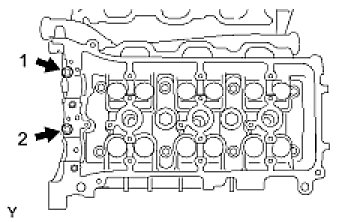

14mm (0.55 in.) Head
Torque: 30 Nm (306 kgf-cm, 22 ft-lbf)

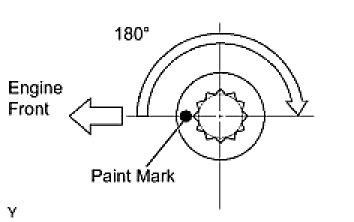

Retighten the cylinder head bolts 180° as shown.

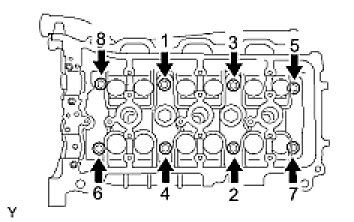

RH
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)
Retighten the cylinder head bolts by 180° as shown.
