Camshaft Bearing Cap

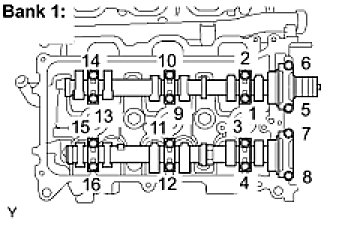

Bank 1






10 mm (0.39 in.) head - Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
12 mm (0.47 in.) head - Torque: 24 Nm (245 kgf-cm, 18 ft-lbf)

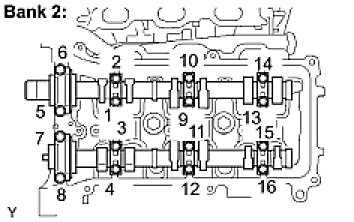

Bank 2






10 mm (0.39 in.) head - Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
12 mm (0.47 in.) head - Torque: 24 Nm (245 kgf-cm, 18 ft-lbf)
