Oil Pan, Engine

OIL PAN SUB-ASSEMBLY

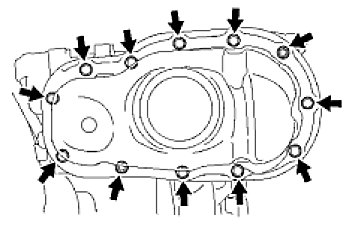

- Install the oil pan with the 17 bolts and 2 nuts, and tighten the bolts and nuts uniformly in several steps.

10 mm (0.39 in.) head - Torque: 10 Nm (102 kgf-cm, 7.4 ft-lbf)
12 mm (0.47 in.) head - Torque: 21 Nm (214 kgf-cm, 16 ft-lbf)
Nut - Torque: 21 Nm (214 kgf-cm, 16 ft-lbf)

HINT: Each bolt length is as follows:





NO.2 OIL PAN SUB-ASSEMBLY





Bolt - Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
Nut - Torque: 10 Nm (102 kgf-cm, 7.4 ft-lbf)
