Valve Clearance

VALVE CLEARANCE (COLD):
Intake 0.15 to 0.25 mm (0.006 to 0.010 in.)
Exhaust 0.29 to 0.39 mm (0.011 to 0.015 in.)


Calculate the thickness of a new lifter so that the valve clearance comes within the specified value.
T: Thickness of removed lifter
A: Measured valve clearance
N: Thickness of new lifter
Intake: N = T + (A - 0.20 mm (0.008 in.))
Exhaust: N = T + (A - 0.34 mm (0.013 in.))

Select a new lifter with a thickness as close as possible to the calculated value.

HINT: Lifters are available in 35 sizes in increments of 0.020 mm (0.0008 in.), from 5.060 mm (0.1992 in.) to 5.740 mm (0.2260 in.).

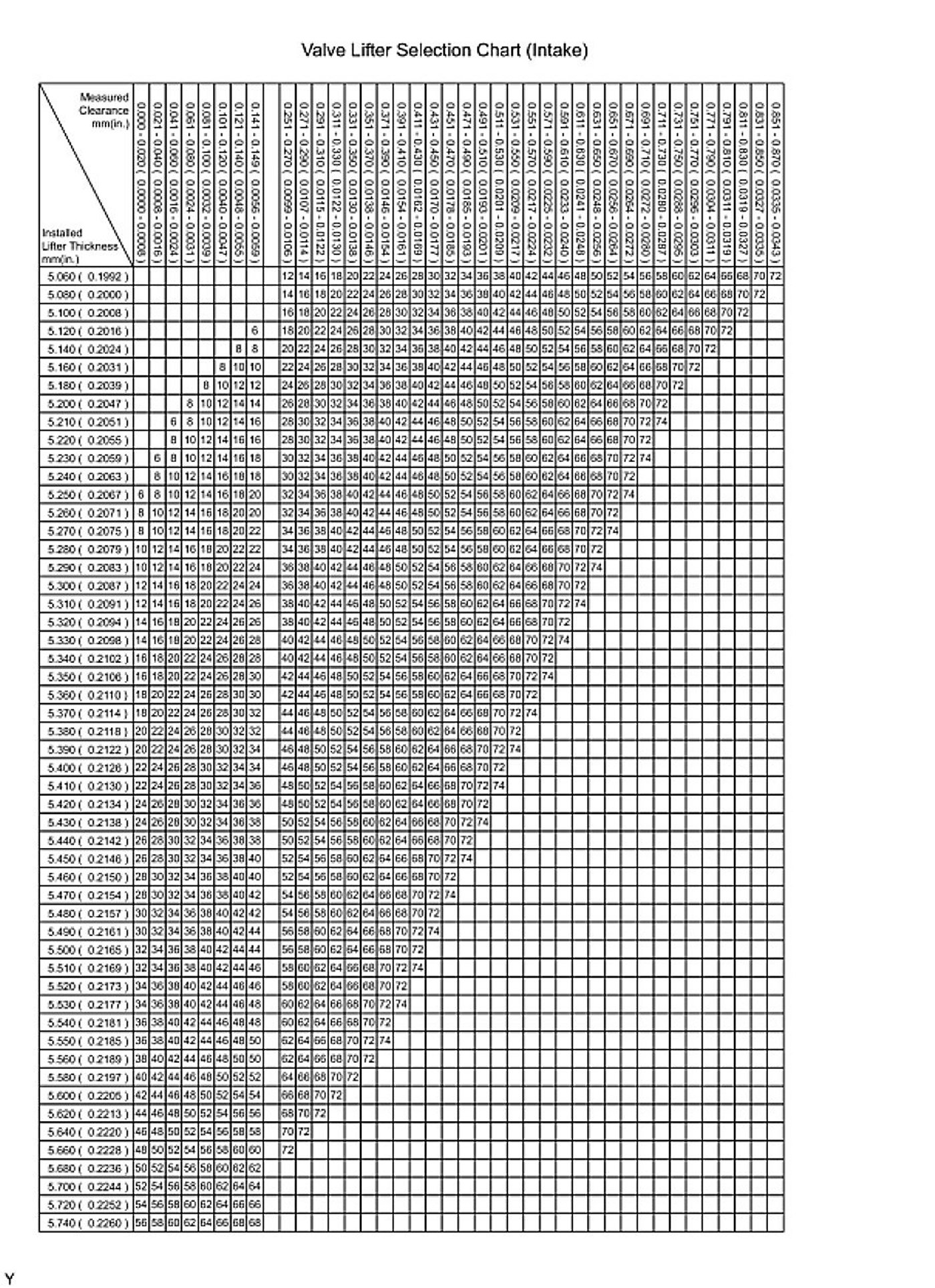

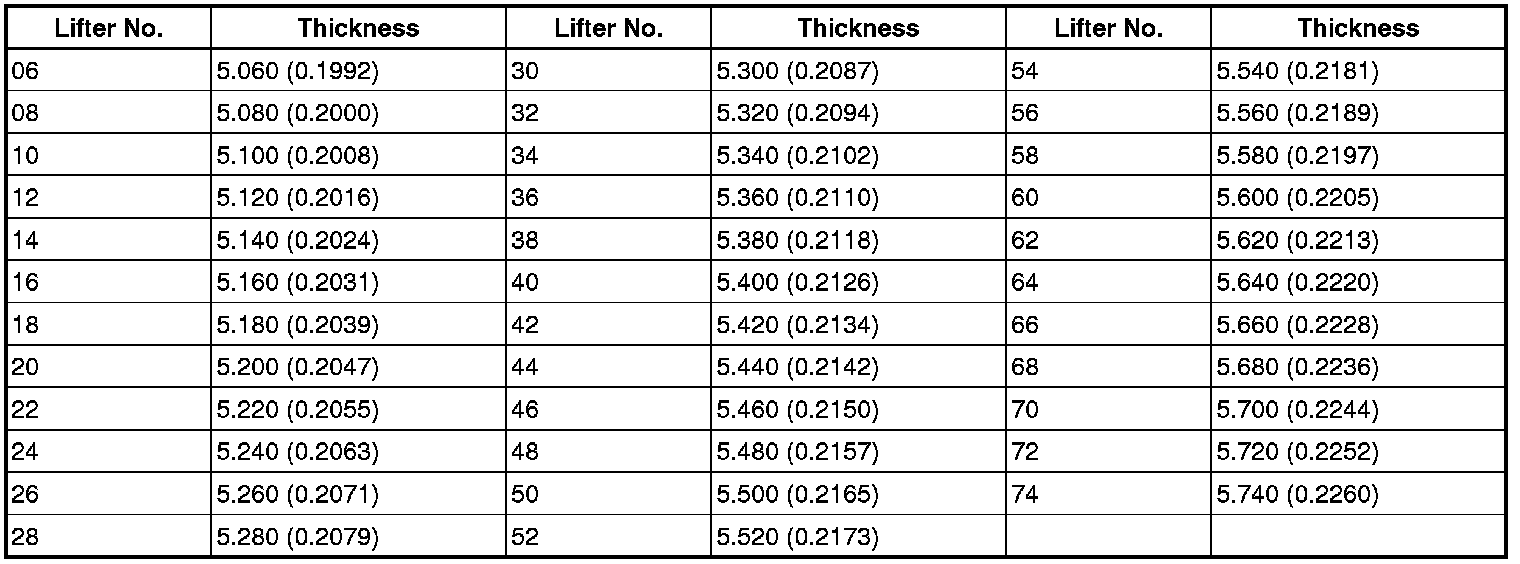

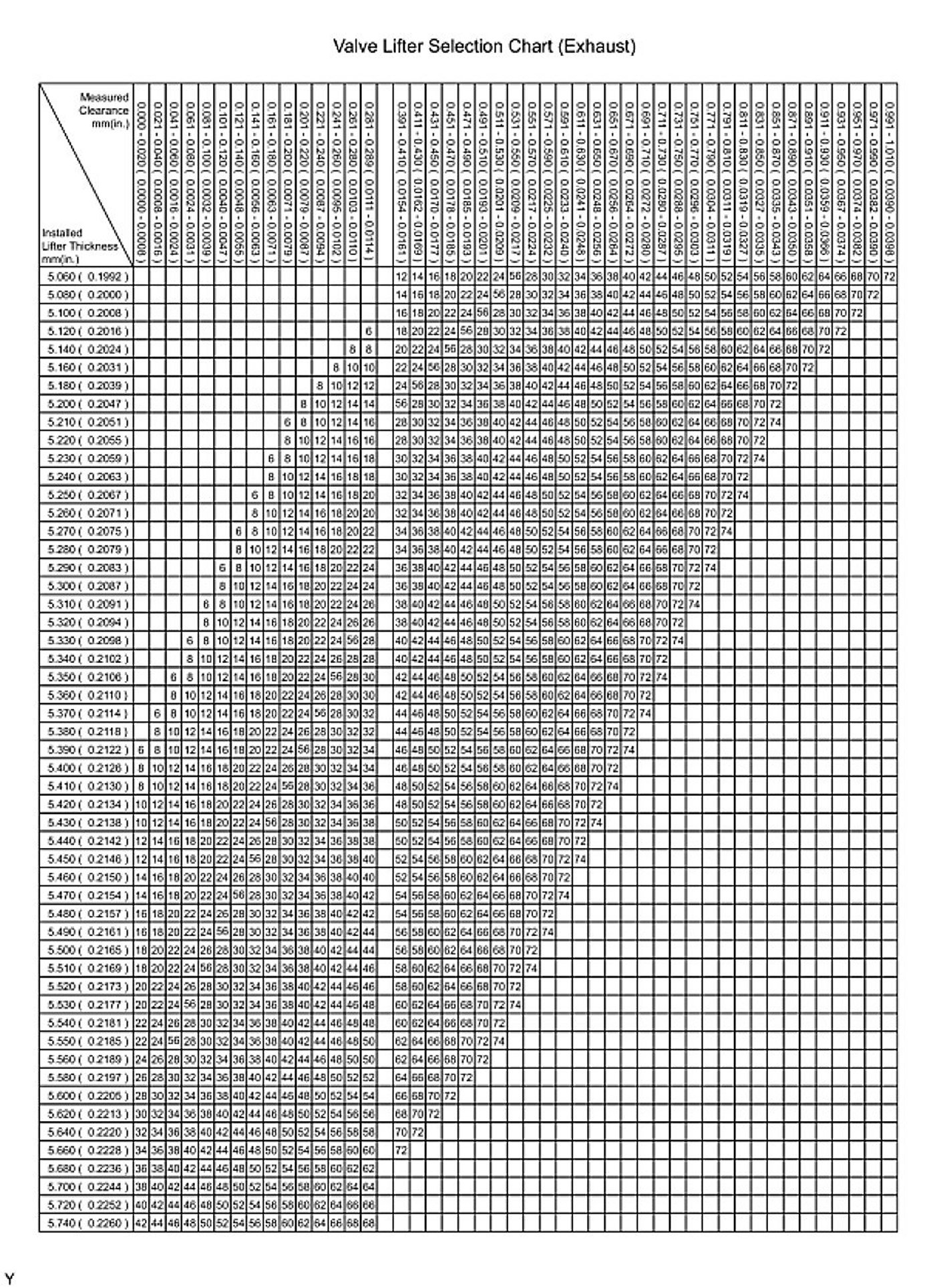

HINT: New lifter thickness [mm (in.)]
