Removal

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: REMOVAL

REMOVAL

1. PRECAUTION

CAUTION: Read "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.

3. REMOVE FRONT SEAT ASSEMBLY RH Removal

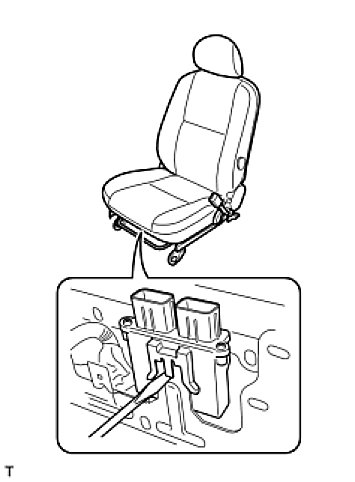

4. REMOVE OCCUPANT CLASSIFICATION ECU
(a) Disconnect the 2 connectors from the occupant classification ECU.






(b) Using a screwdriver, remove the occupant classification ECU.
