Removal

SUPPLEMENTAL RESTRAINT SYSTEM: SEAT POSITION SENSOR: REMOVAL

REMOVAL

1. PRECAUTION

CAUTION: Read "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.

3. REMOVE FRONT SEAT ASSEMBLY LH Removal

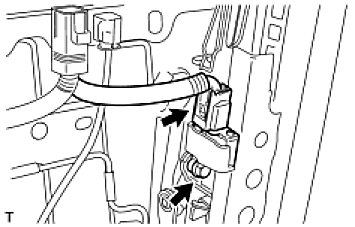

4. REMOVE SEAT POSITION SENSOR
(a) Disconnect the connector from the seat position sensor.






(b) Remove the bolt and the seat position sensor.
