Installation

1GR-FE IGNITION: IGNITION COIL: INSTALLATION

INSTALLATION

1. INSTALL IGNITION COIL ASSEMBLY

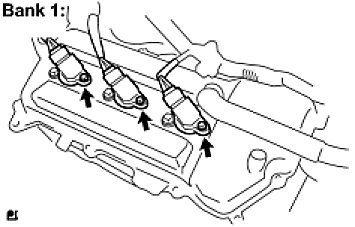

(a) For Bank 1:
(1) Install the 3 ignition coils with the 3 bolts.
Torque: 10 Nm (102 kgf-cm, 7.4 ft-lbf)
(2) Connect the 3 ignition coil connectors.

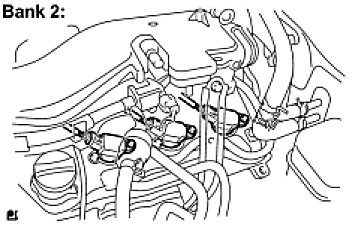

(b) For Bank 2:
(1) Install the 3 ignition coils with the 3 bolts.
Torque: 10 Nm (102 kgf-cm, 7.4 ft-lbf)
(2) Connect the 3 ignition coil connectors.

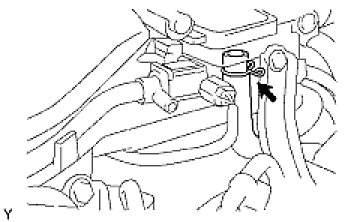

2. CONNECT VENTILATION HOSE
(a) Connect the ventilation hose to the intake air surge tank.
3. INSTALL NO. 1 SURGE TANK STAY Installation

4. INSTALL OIL BAFFLE PLATE Installation

5. INSTALL AIR CLEANER ASSEMBLY Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
7. INSPECT IGNITION TIMING Engine

8. INSPECT ENGINE IDLING SPEED Engine

9. INSTALL V-BANK COVER Installation
