Removal

1GR-FE INTAKE: VACUUM SWITCHING VALVE: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE V-BANK COVER Removal

3. REMOVE AIR CLEANER ASSEMBLY Removal

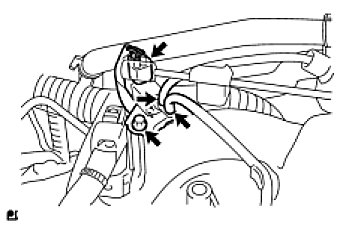

4. REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY
(a) Disconnect the connector.
(b) Disconnect the 2 vacuum hoses.
(c) Remove the bolt and No. 1 vacuum switching valve from the intake air surge tank.
