Installation

1GR-FE EMISSION CONTROL: PURGE VALVE: INSTALLATION

INSTALLATION

1. INSTALL DUTY VACUUM SWITCHING VALVE

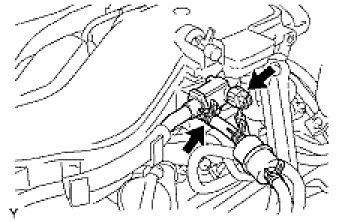

(a) Connect the hose to the vacuum switching valve.

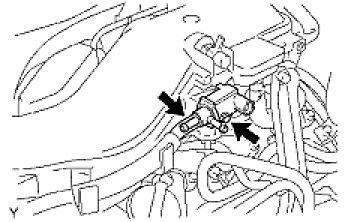

(b) Install the vacuum switching valve with the bolt.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)






(c) Connect the vapor feed hose.
(d) Connect the connector.
2. INSTALL V-BANK COVER Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
