Heated Oxygen Sensor

1GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR:

INSPECTION





1. INSPECT HEATED OXYGEN SENSOR
(a) Check the resistance.

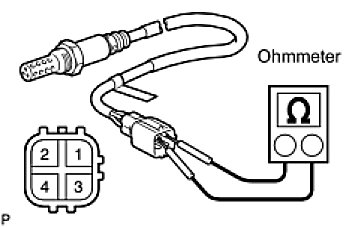

(1) Using an ohmmeter, measure the resistance between the terminals.

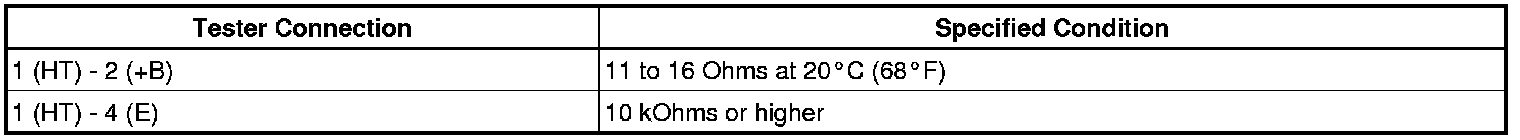

Standard resistance:
