Removal

1GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE HEATED OXYGEN SENSOR
(a) Disconnect the 2 heated oxygen sensors connectors.

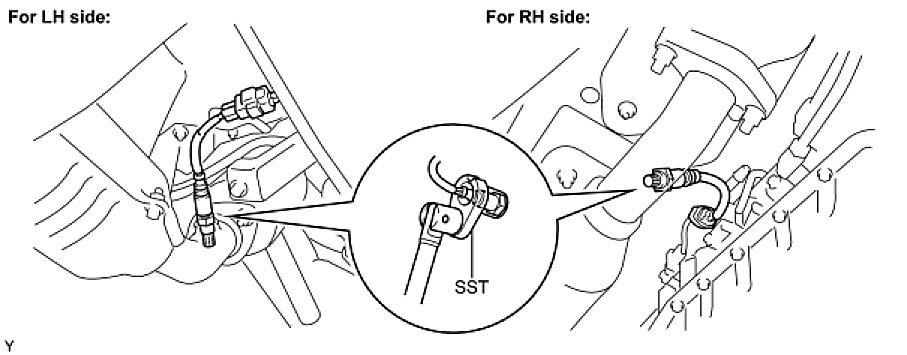

(b) Using SST, remove the 2 heated oxygen sensors from the exhaust pipe.
SST: 09224-00010
