Toyota Truck
>>
2008
>>
FJ Cruiser 4WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Locations

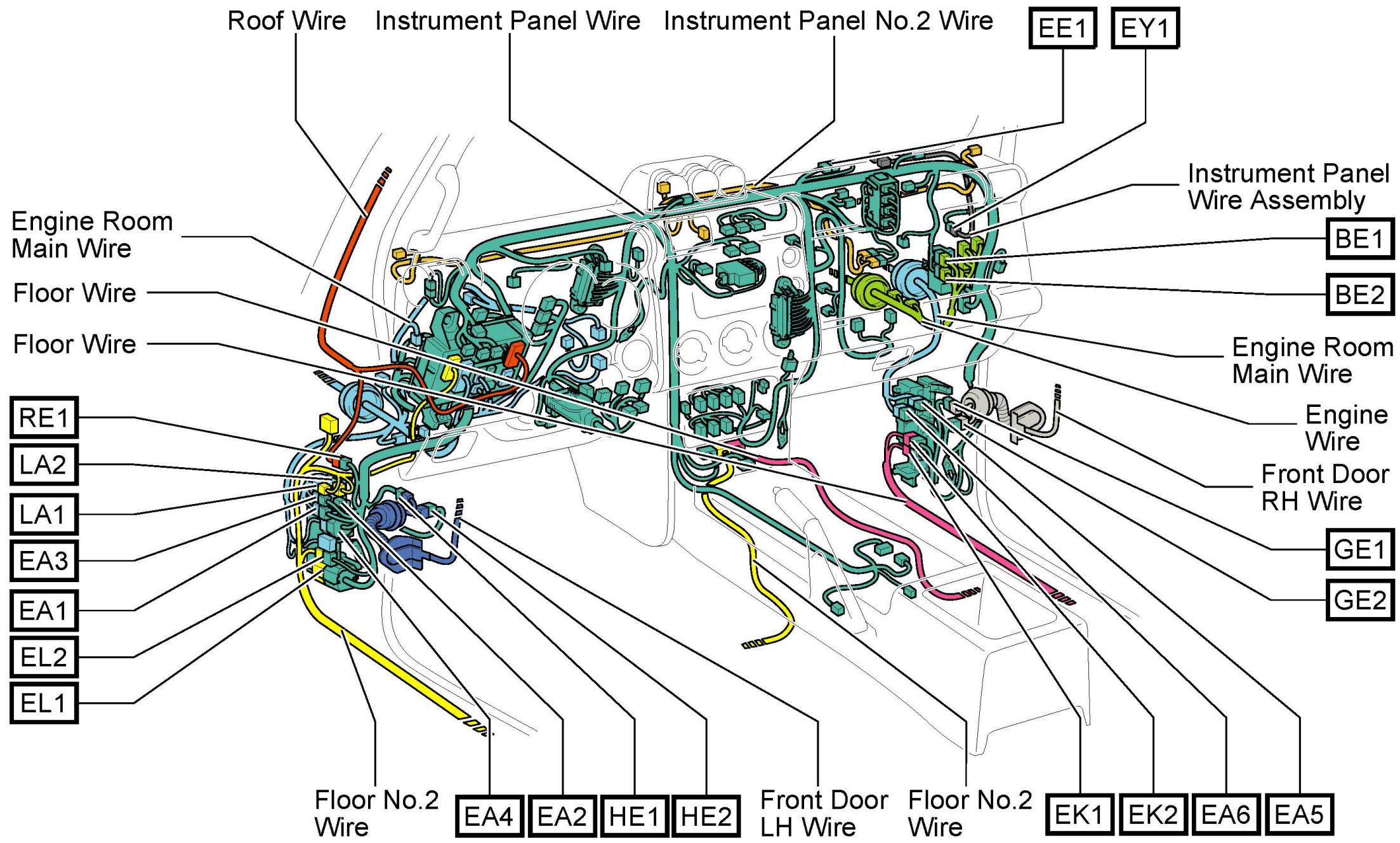

Multiple Junction Connector: Locations

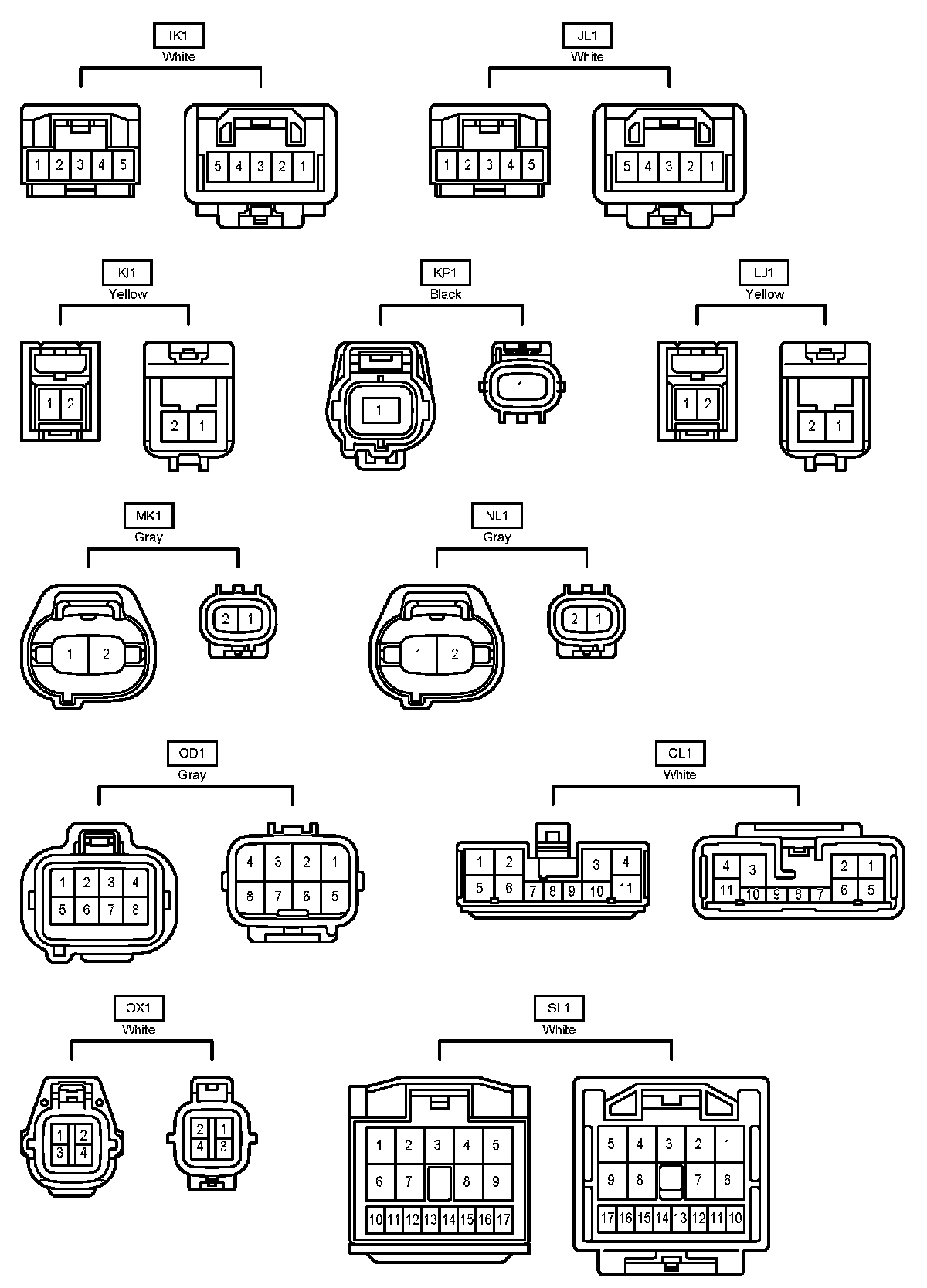

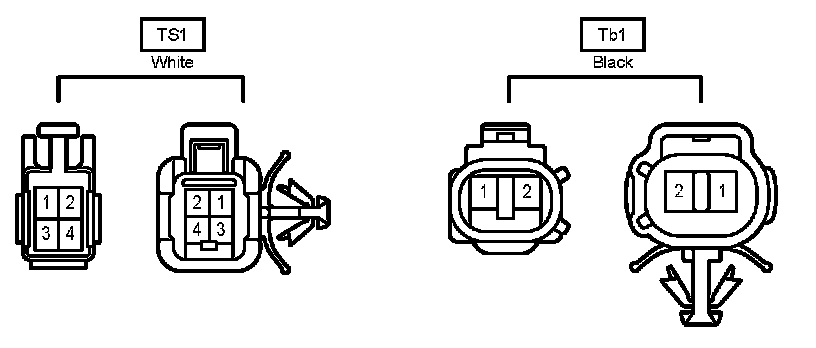

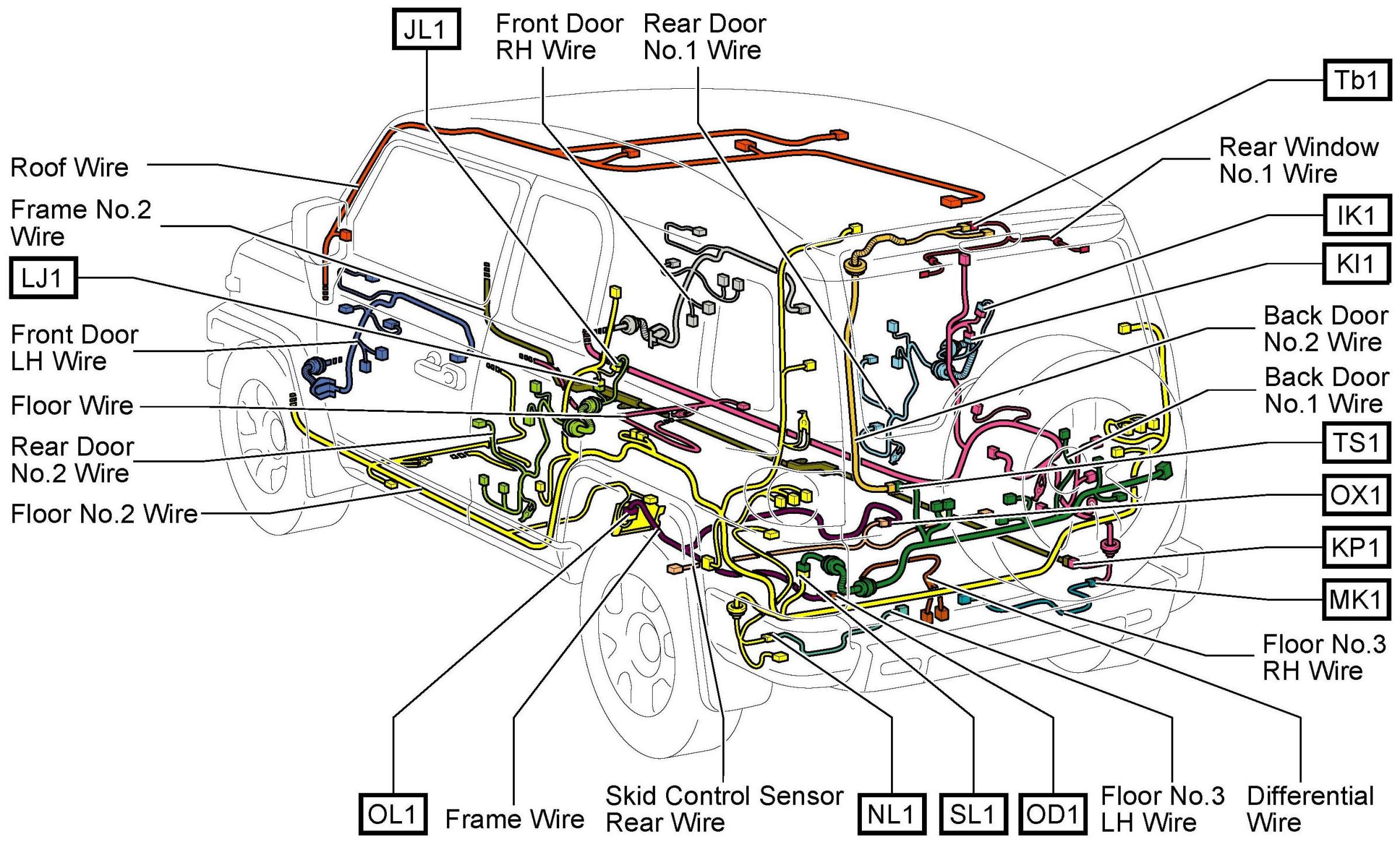

JL1 - TS1:
Connector Views:
Connector Views:

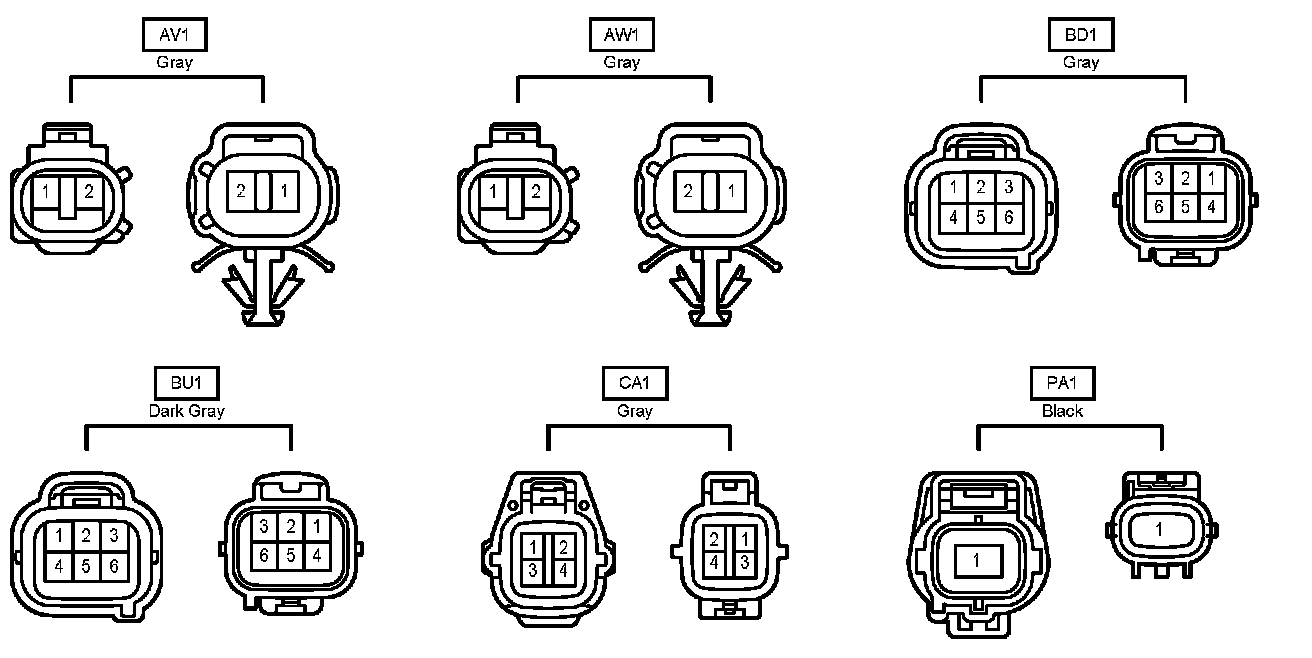

AV1 - CA1:
Connector Views:

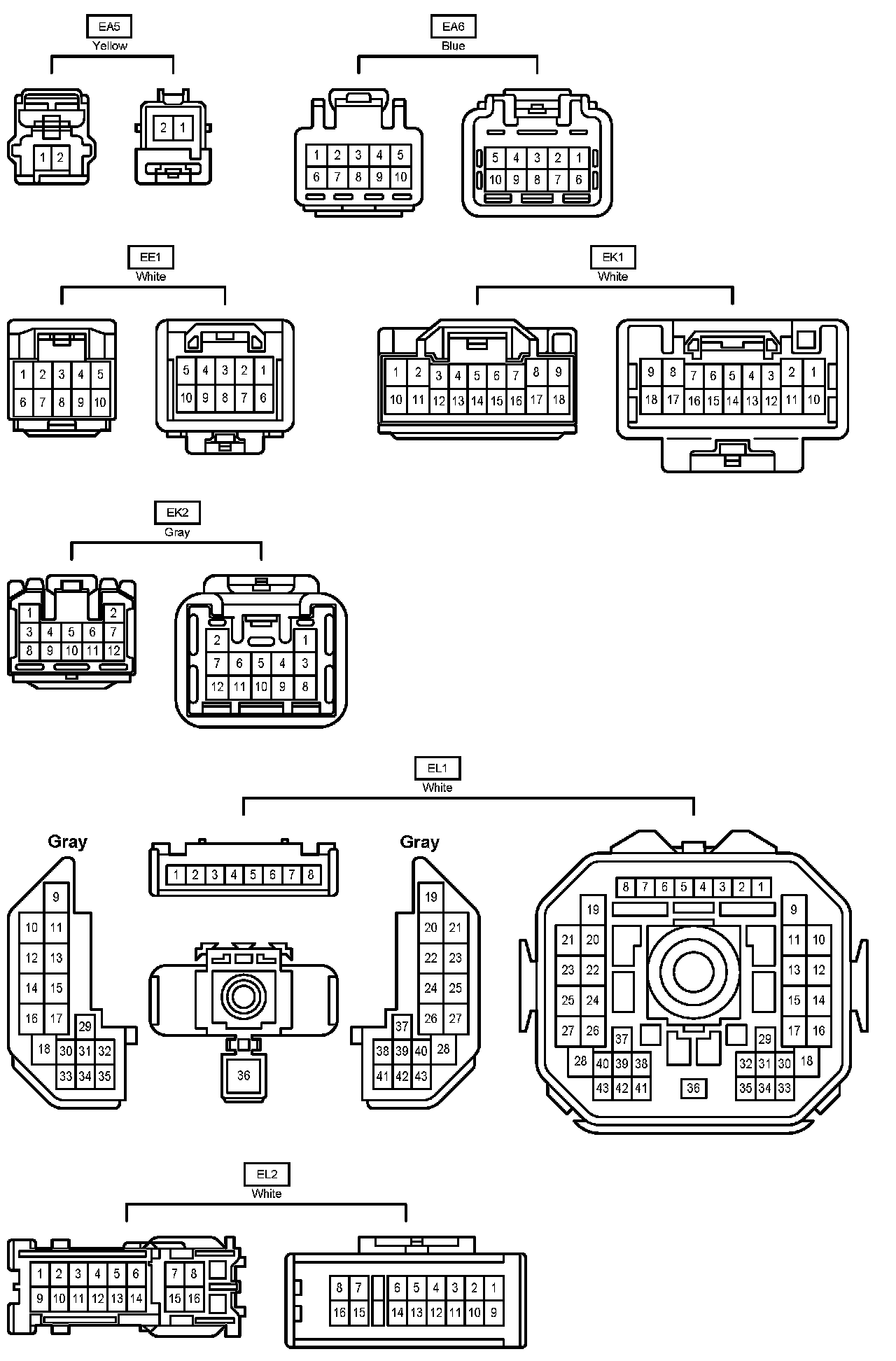

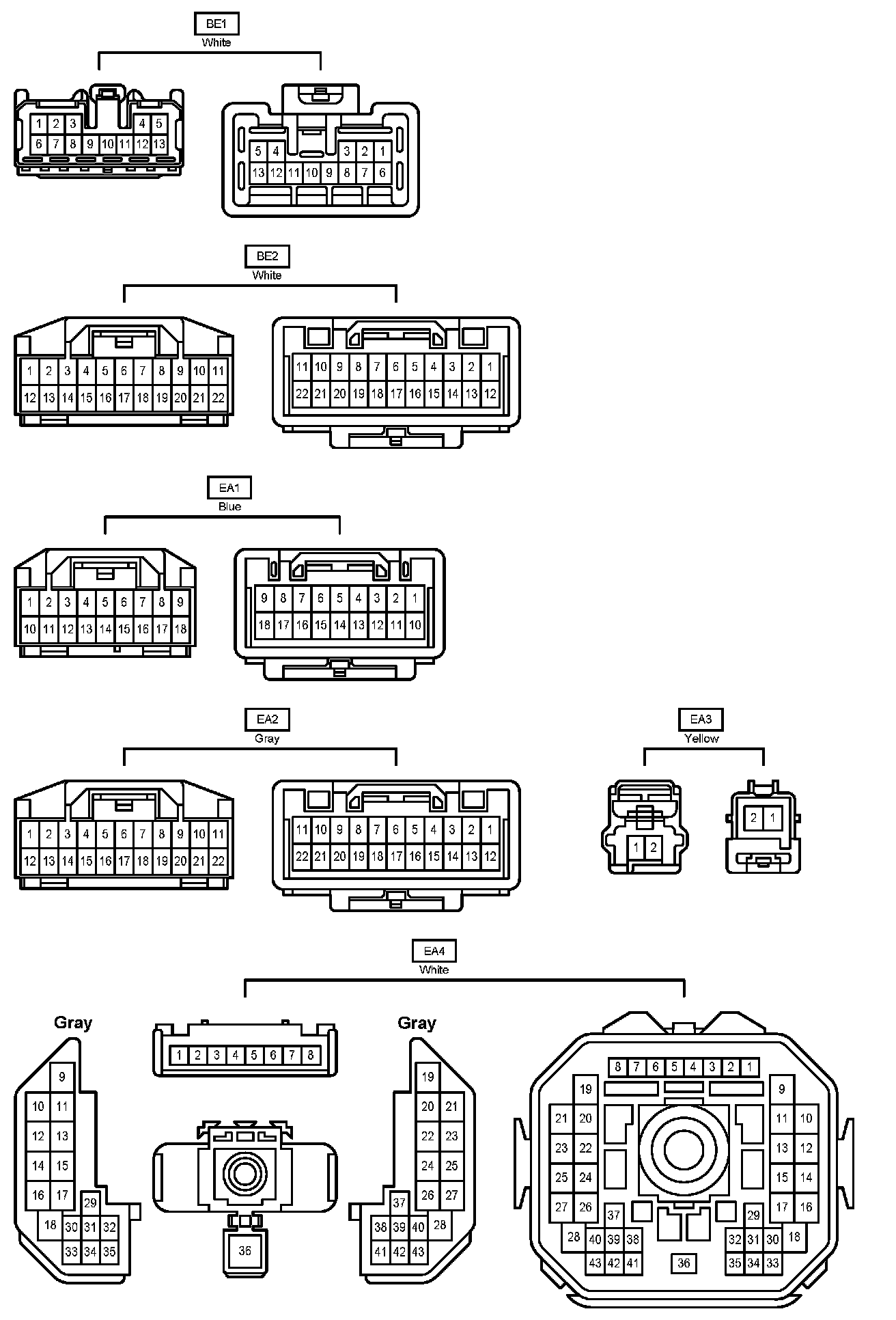

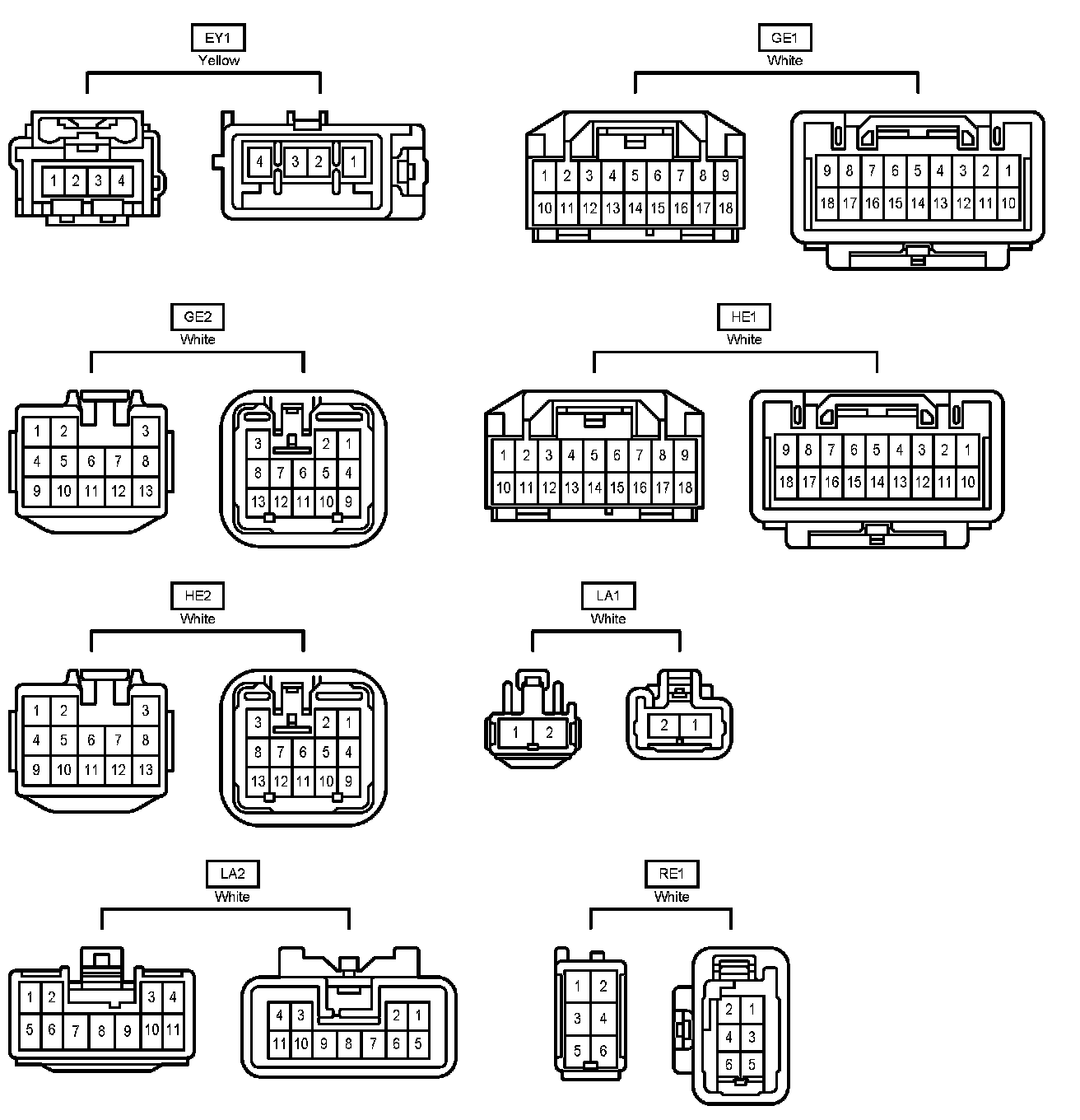

BE1 - RE1:
Connector Views:
Connector Views:
Connector Views:

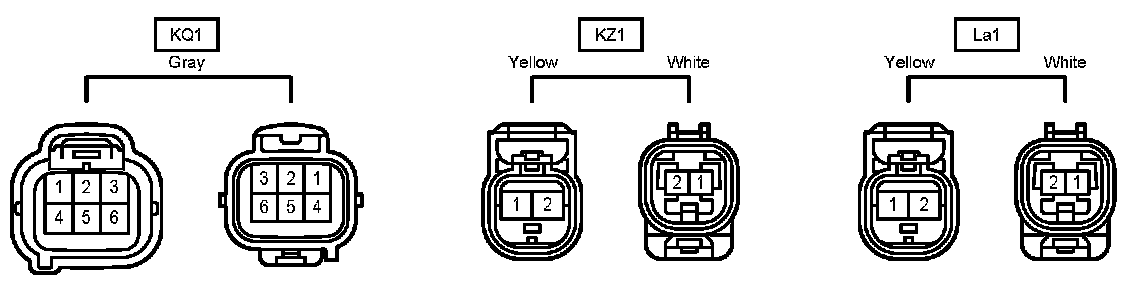

KQ1 - La1:
Connector Views:
