Installation

TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

INSTALLATION

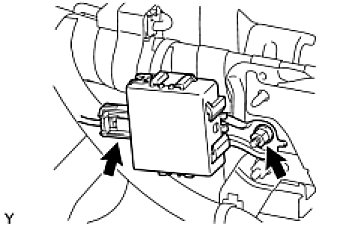

1. INSTALL TIRE PRESSURE WARNING ECU






(a) Install the tire pressure warning ECU with the nut.
Torque: 6.0 Nm (61 kgf-cm, 53 in-lbf)
(b) Connect the tire pressure warning ECU connector.
2. INSTALL INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY RH Installation

3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

4. REGISTRATION TRANSMITTED ID Programming and Relearning

5. INSPECT TIRE PRESSURE WARNING SYSTEM Test Mode Procedure
