Fluid - Differential: Testing and Inspection

DIFFERENTIAL: DIFFERENTIAL OIL:

ON-VEHICLE INSPECTION





1. CHECK DIFFERENTIAL OIL
(a) Stop the vehicle on a level surface.
(b) Remove the differential filler plug and gasket.
(c) Check that the oil level is between 0 to 5 mm (0 to 0.20 in.) from the bottom lip of the differential filler plug hole.
NOTICE:
- After changing the oil seal, drive the vehicle and then check the oil level again.
- Too much or too little oil will lead to differential problems.

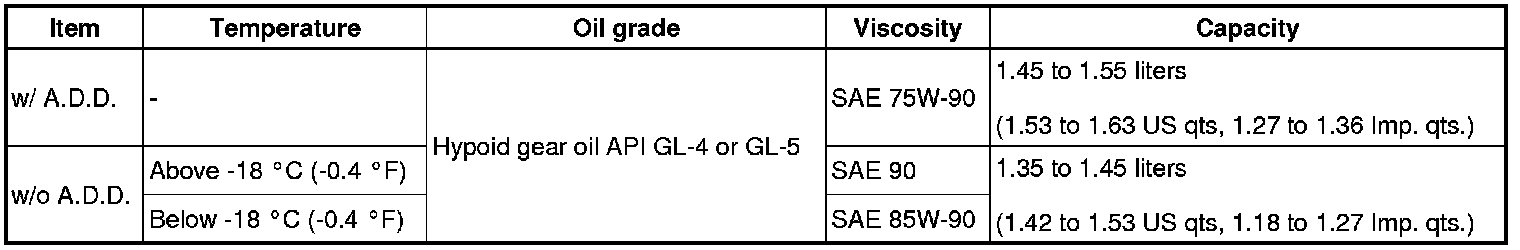

HINT: If necessary, fill the differential carrier assembly with hypoid gear oil.

Front Differential:






Rear Differential:






(d) Check for oil leakage when the oil level is low.
(e) Install the differential filler plug with a new gasket.
Front differential - Torque: 39 Nm (400 kgf-cm, 29 ft-lbf)
Rear differential - Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)
