AIR CONDITIONING UNIT: DISASSEMBLY

DISASSEMBLY

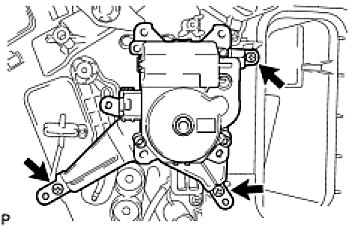

1. REMOVE MODE CONTROL SERVO MOTOR






(a) Remove the 3 screws and remove the mode control servo motor.

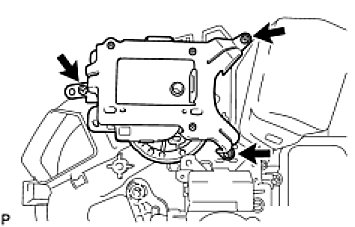

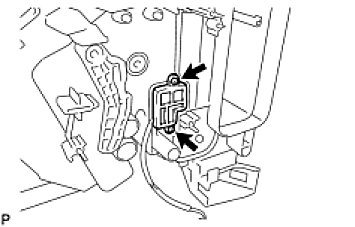

2. REMOVE AIR MIX CONTROL SERVO MOTOR






(a) Remove the 3 screws and remove the air mix control servo motor.

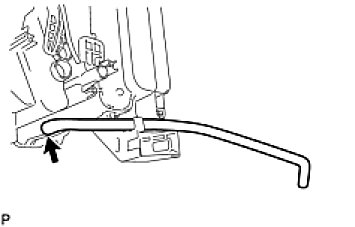

3. REMOVE COOLER UNIT DRAIN HOSE






(a) Remove the cooler unit drain hose.

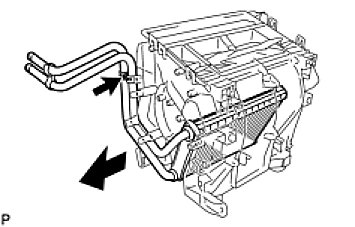

4. REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY






(a) Remove the screw and clamp.
(b) Remove the heater radiator unit from the heater case.

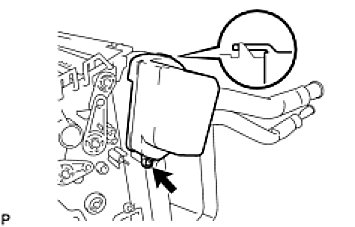

5. REMOVE COVER PLATE






(a) Remove the screw.
(b) Disengage the claw and remove the cover plate.

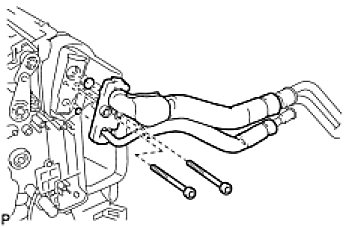

6. REMOVE AIR CONDITIONING TUBE ASSEMBLY
(a) Using a hexagon wrench 4, remove the 2 hexagon bolts and remove the air conditioning tube.
(b) Remove the 2 O-rings from the air conditioning tube.

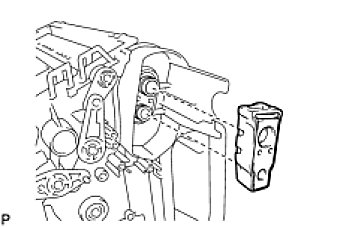

7. REMOVE COOLER EXPANSION VALVE
(a) Remove the cooler expansion valve from the cooler evaporator.

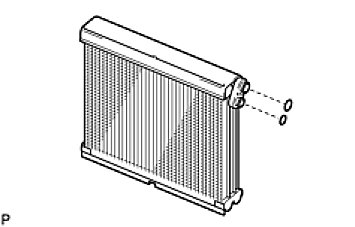

8. REMOVE NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY






(a) Remove the 2 screws and remove the plate.

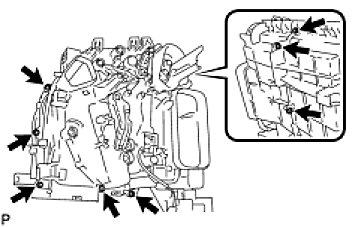

(b) Remove the 8 screws and separate the heater case.






(c) Remove the cooler evaporator.
Remove the 2 O-rings from the cooler evaporator.

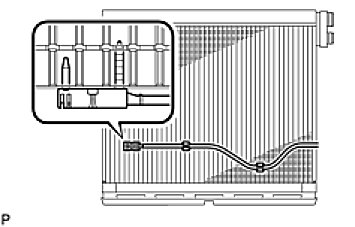

9. REMOVE NO. 1 COOLER THERMISTOR
(a) Remove the cooler thermistor from the cooler evaporator.
