Removal

AIR CONDITIONING: CONDENSER: REMOVAL

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE RADIATOR GRILLE Removal

4. REMOVE FRONT BUMPER COVER Removal







5. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
(a) Remove the bolt and disconnect the discharge hose from the cooler condenser.
(b) Remove the O-ring from the discharge hose.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.





6. DISCONNECT AIR CONDITIONING TUBE ASSEMBLY
(a) Remove the bolt and disconnect the air conditioning tube from the cooler condenser.
(b) Remove the O-ring from the air conditioning tube.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.





7. REMOVE COOLER BRACKET
(a) Remove the nut.
(b) Disengage the clamp and remove the cooler bracket.

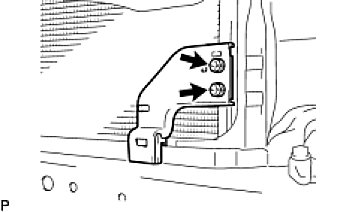

8. REMOVE NO. 2 COOLER CONDENSER CUSHION LH
(a) Remove the 2 bolts and remove the cooler condenser cushion.

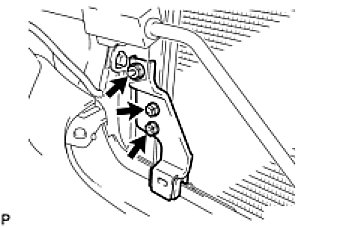

9. REMOVE NO. 2 COOLER CONDENSER CUSHION RH
(a) Remove the 2 bolts and nut and remove the cooler condenser cushion.

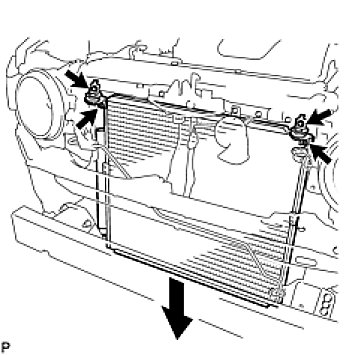

10. REMOVE COOLER CONDENSER ASSEMBLY
(a) Remove the 4 bolts and remove the cooler condenser cushion.
NOTE: Hold the cooler condenser by hand to prevent it from falling off when removing the cushion.

(b) Remove the condenser from the vehicle.
NOTE: Do not damage the condenser or radiator when removing the condenser.
