Reassembly

AIR CONDITIONING: CONDENSER: REASSEMBLY

REASSEMBLY

1. INSTALL COOLER DRYER

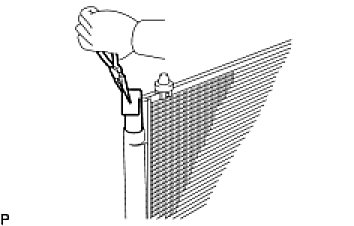

(a) Using pliers, install the cooler dryer onto the modulator.

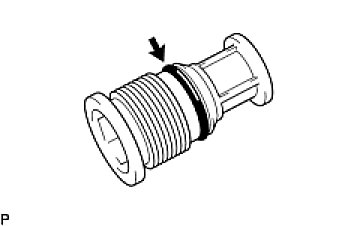

(b) Apply sufficient compressor oil to the O-ring and the fitting surface of the cap.
Compressor oil:
ND-OIL 8 or the equivalent

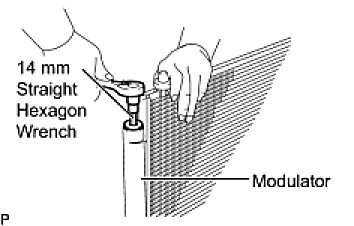

(c) Using a 14 mm straight hexagon wrench, install the cap onto the modulator.
Torque: 2.9 Nm (30 kgf-cm, 25 in-lbf)
