Reassembly

AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

REASSEMBLY

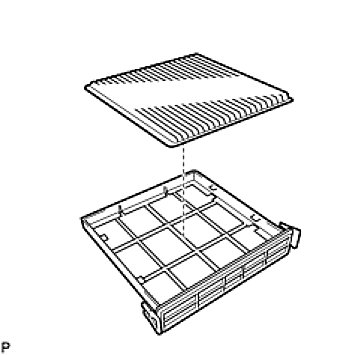

1. INSTALL AIR REFINER ELEMENT
(a) Install the air refiner element.

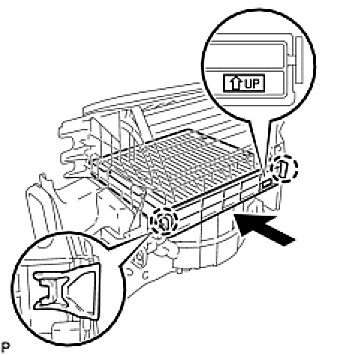

2. INSTALL CLEAN AIR FILTER SUB-ASSEMBLY
(a) Engage the 2 claws and install the air filter.
NOTE: Install the air filter with its UP mark oriented in the correct direction.





3. INSTALL BLOWER RESISTOR
(a) Install the blower resistor with the 2 screws.

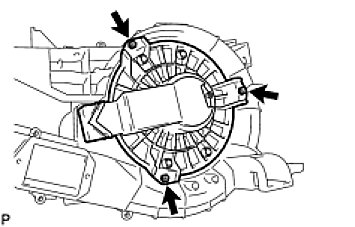

4. INSTALL BLOWER MOTOR
(a) Install the blower motor with the 3 screws.

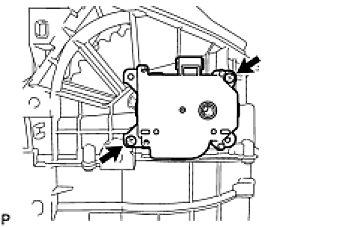

5. INSTALL AIR INLET CONTROL SERVO MOTOR
(a) Install the air inlet control servo motor with the 2 screws.
