Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

DISASSEMBLY





1. REMOVE AIR INLET CONTROL SERVO MOTOR
(a) Remove the 2 screws and remove the air inlet control servo motor.






2. REMOVE BLOWER MOTOR
(a) Remove the 3 screws and the blower motor.






3. REMOVE BLOWER RESISTOR
(a) Remove the 2 screws and the blower resistor.

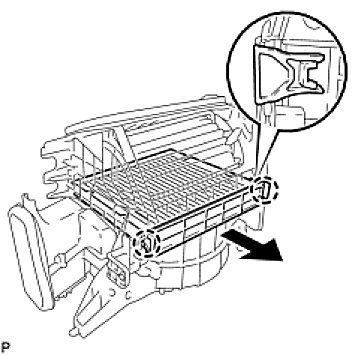

4. REMOVE CLEAN AIR FILTER SUB-ASSEMBLY
(a) Disengage the 2 claws and remove the air filter.






5. REMOVE AIR REFINER ELEMENT
(a) Remove the air refiner element.
