Installation

AIR CONDITIONING: BLOWER RESISTOR: INSTALLATION

INSTALLATION

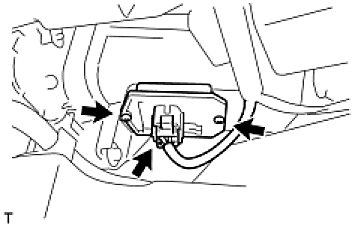

1. INSTALL BLOWER RESISTOR
(a) Install the blower resistor with the 2 screws.
(b) Connect the connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
