Connecting Rod: Specifications

Connecting Rod Nut/Bolt

Torque: 25 Nm (250 kgf-cm, 18 ft-lbf)

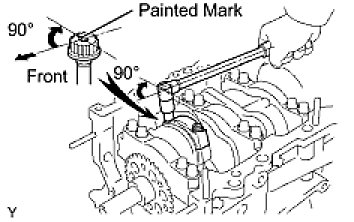

Retighten the cap bolts 90° as shown.

Maximum misalignment:
0.05 mm (0.0020 in.) per 100 mm (3.94 in.)

Maximum twist:
0.15 mm (0.0059 in.) per 100 mm (3.94 in.)
