Inner Circuit

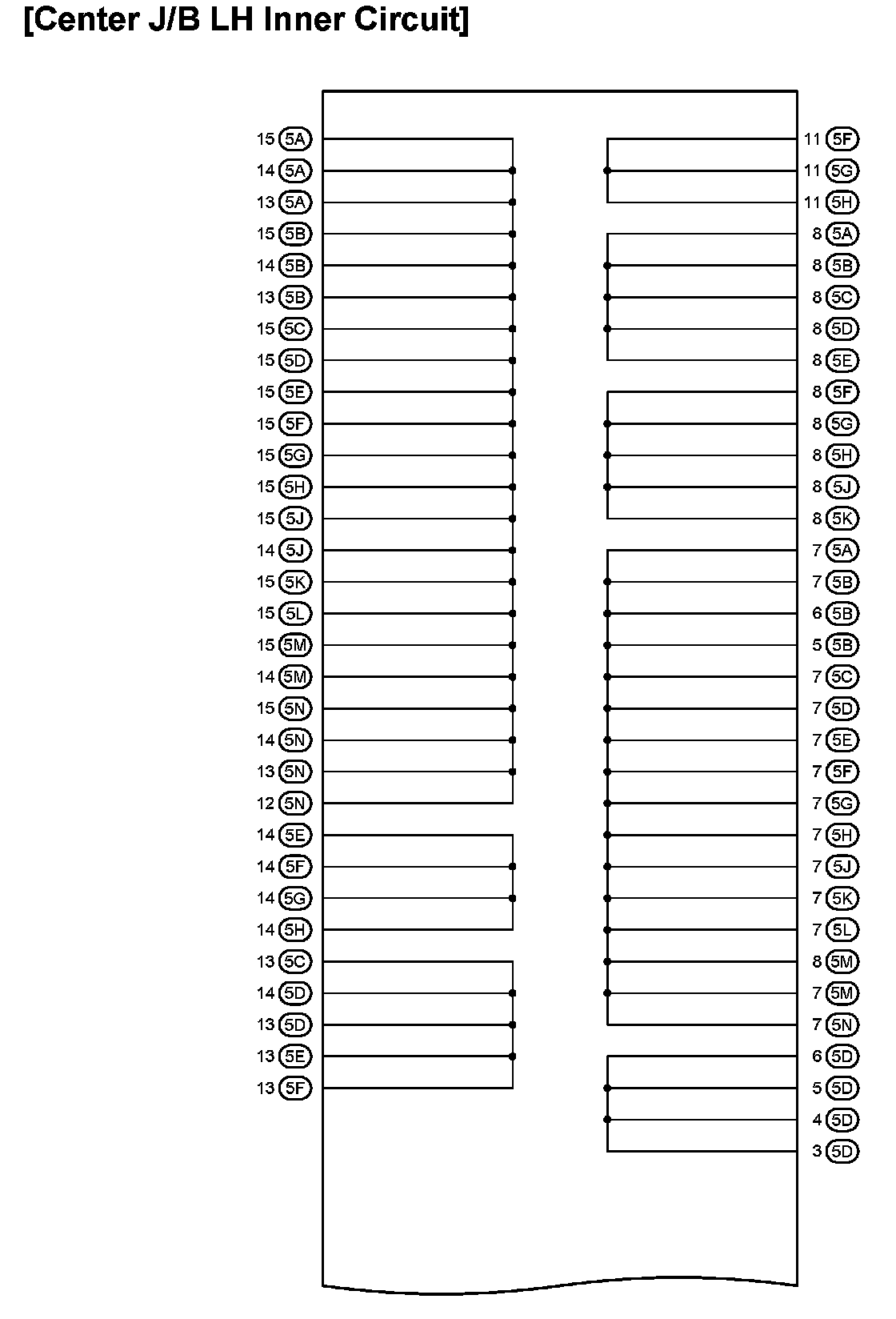

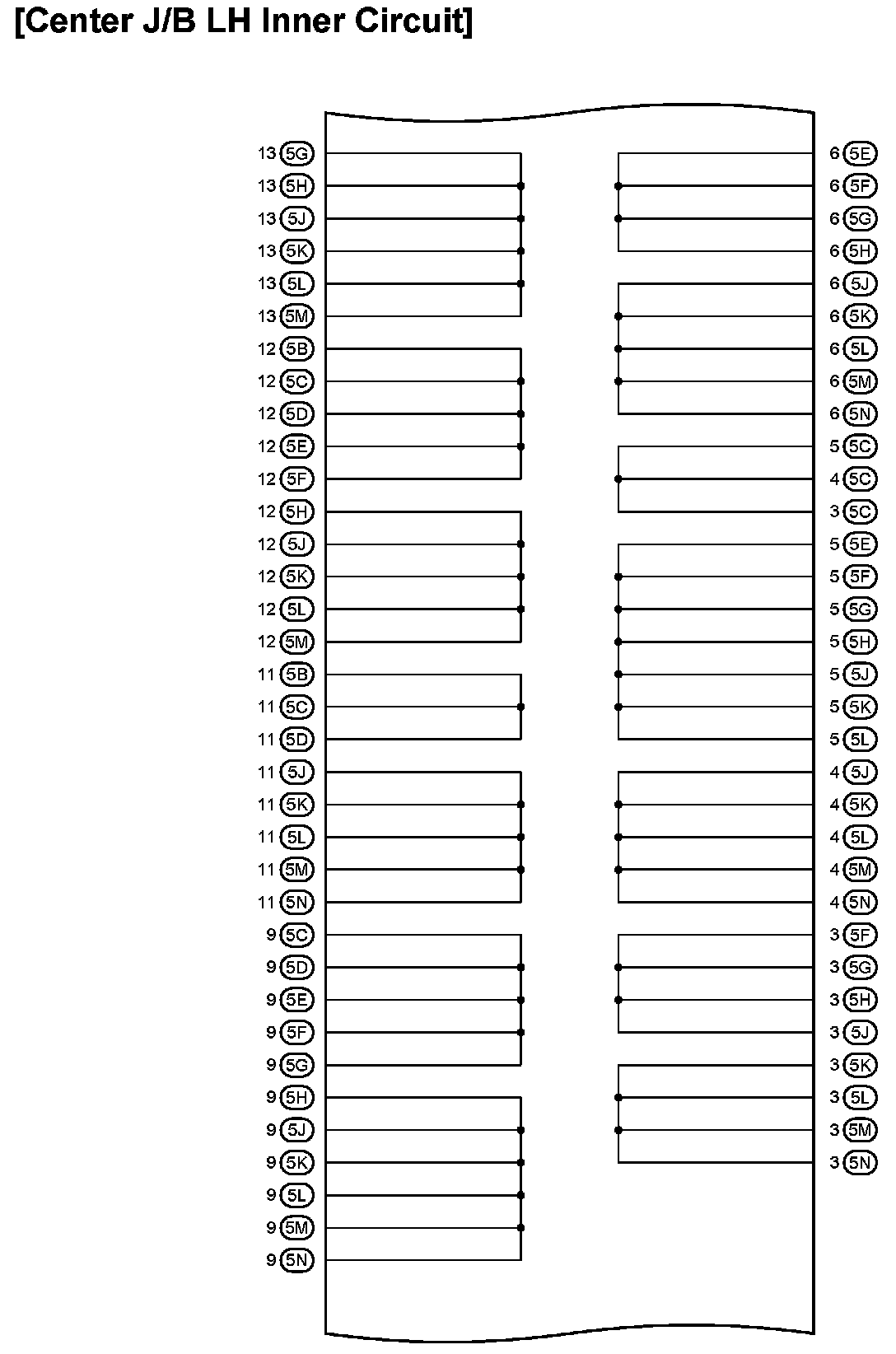

Center J/B LH Inner Circuit:

Center J/B LH Inner Circuit:

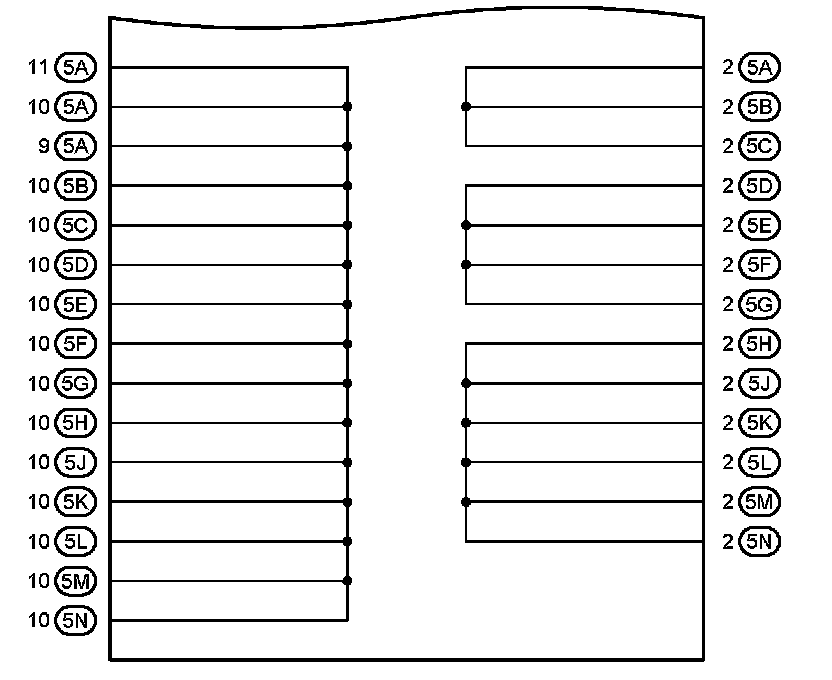

Center J/B LH Inner Circuit:

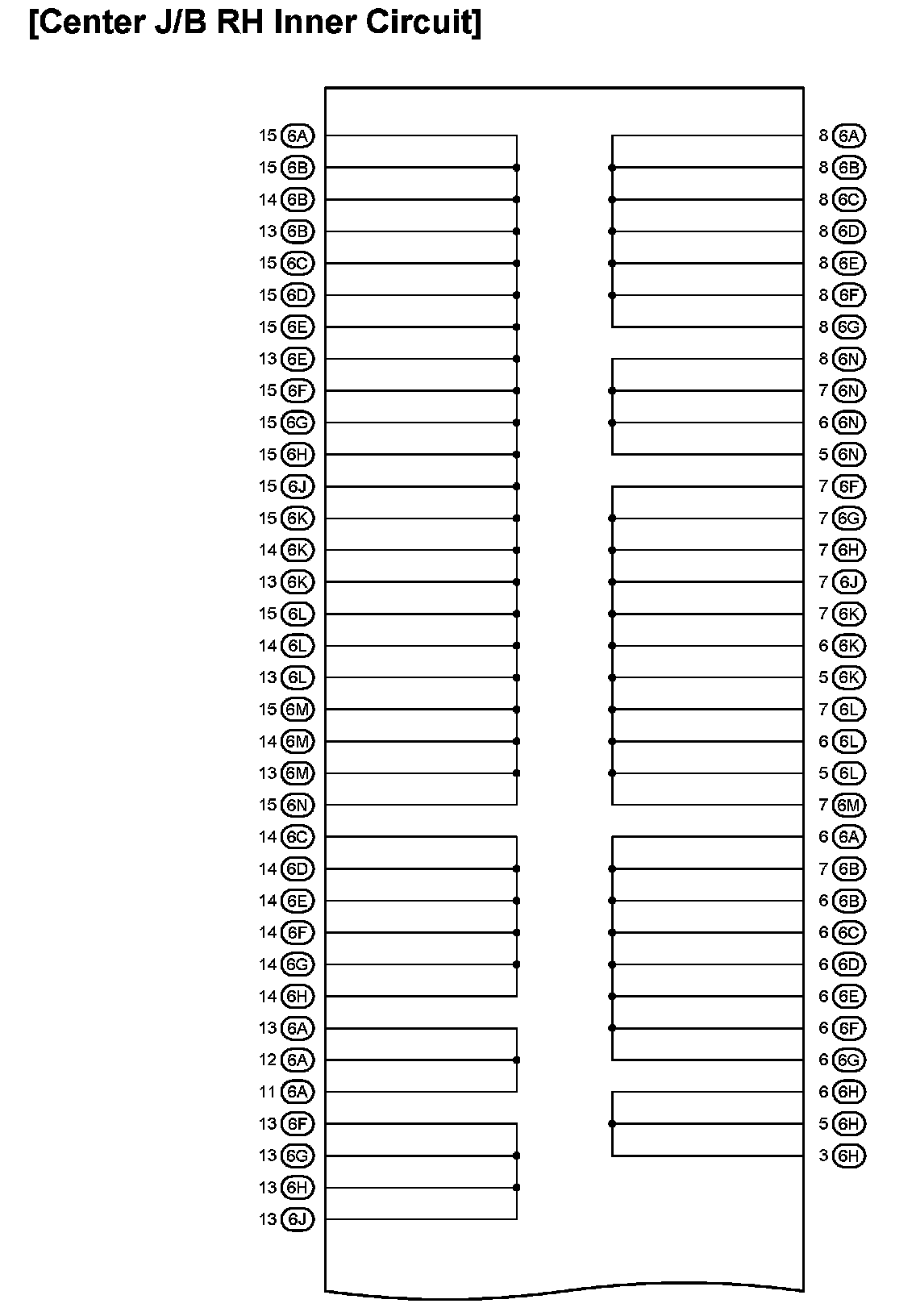

Center J/B RH Inner Circuit:

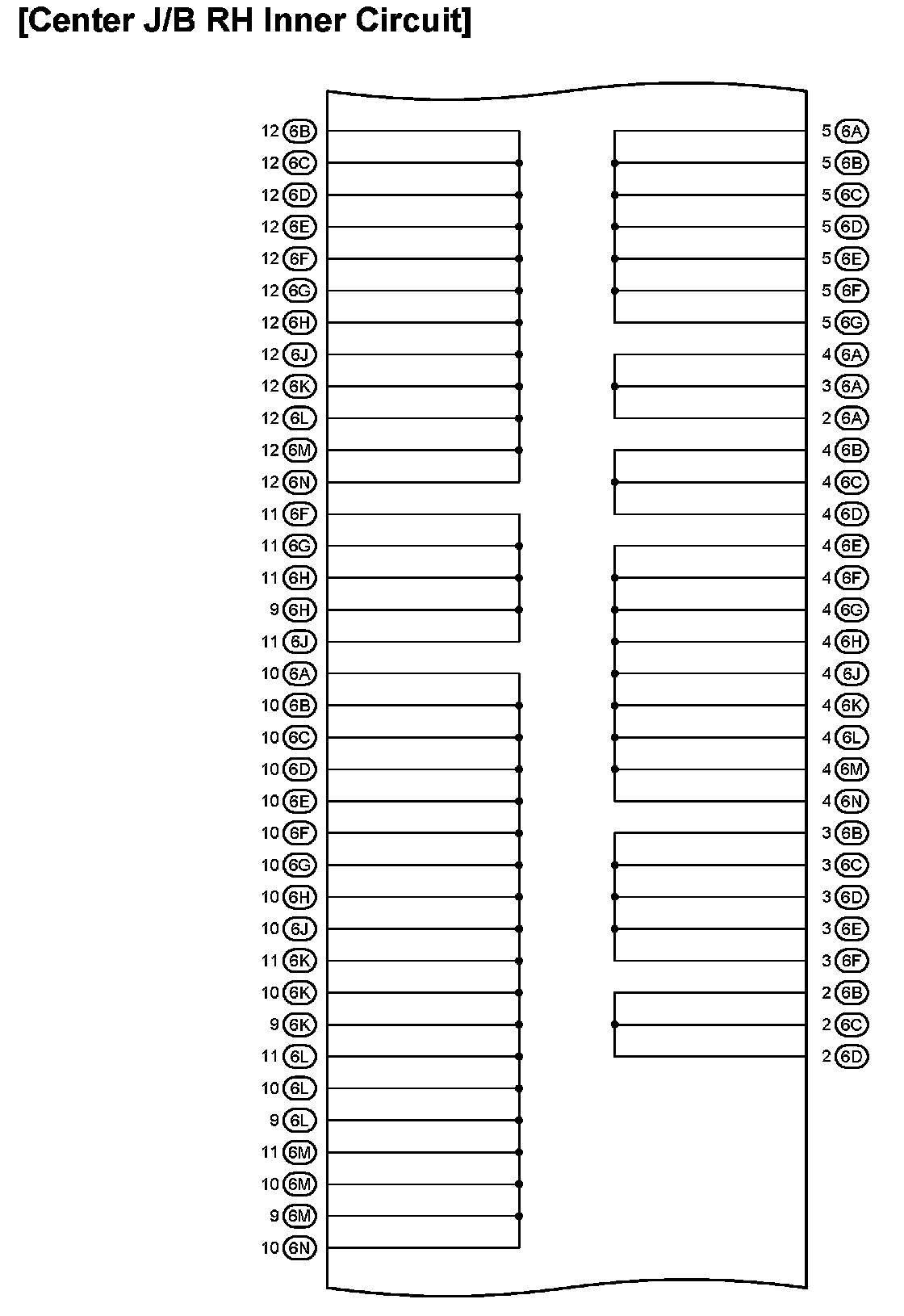

Center J/B RH Inner Circuit:

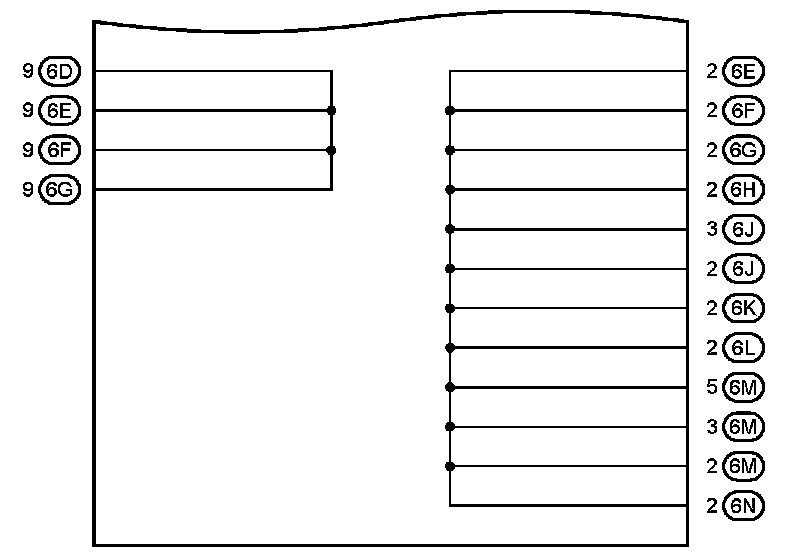

Center J/B RH Inner Circuit:

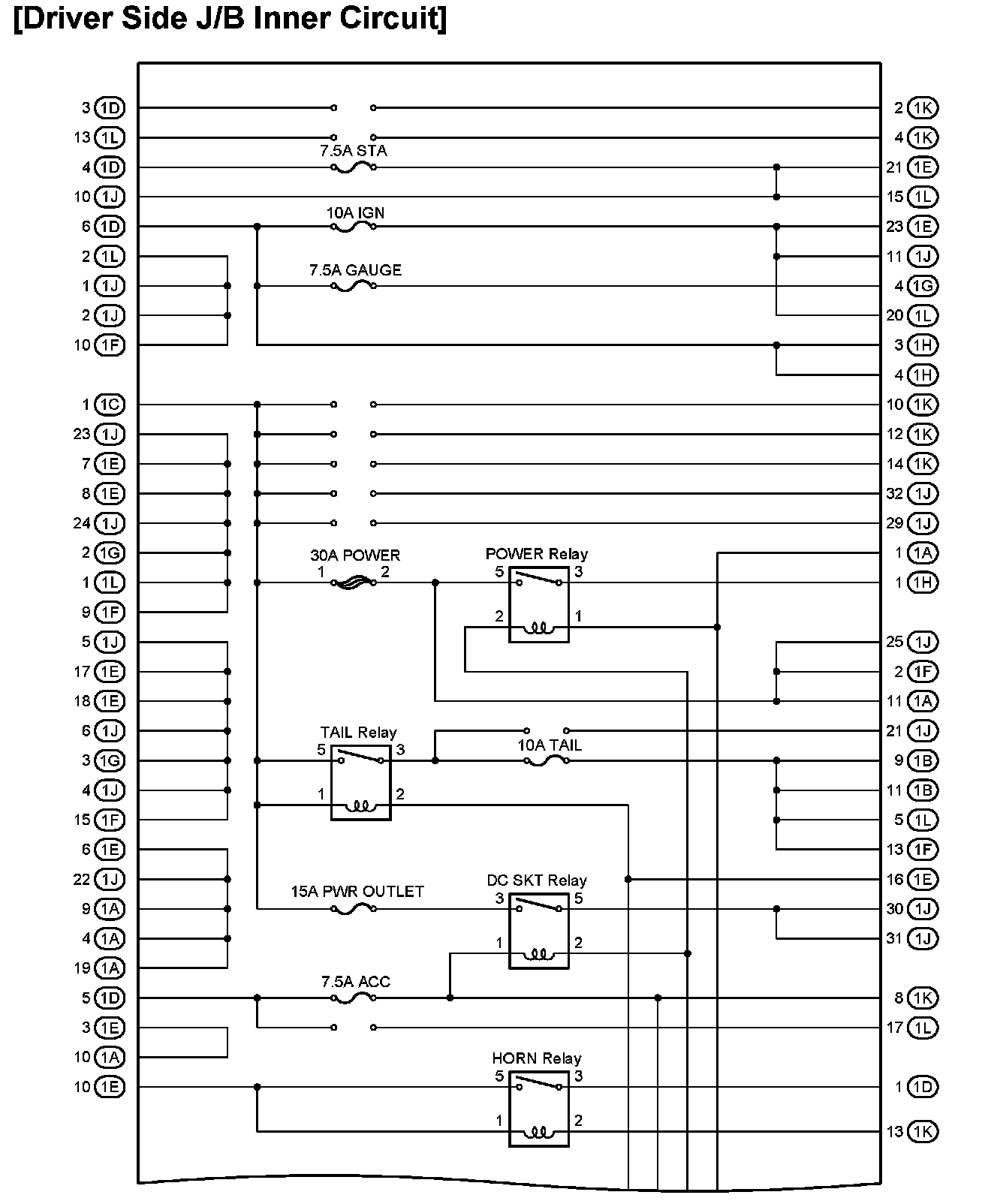

Driver Side J/B Inner Circuit:

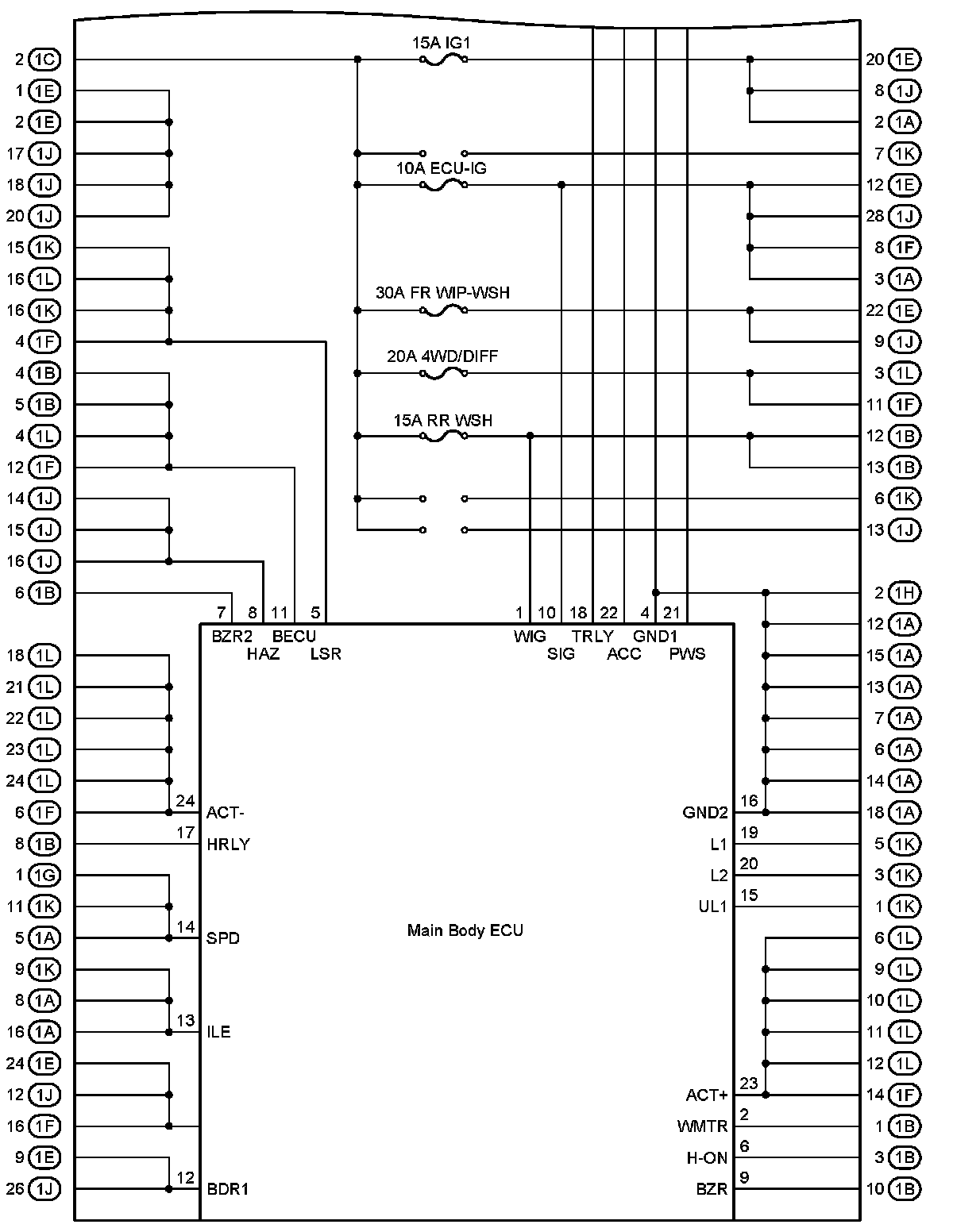

Driver Side J/B Inner Circuit:

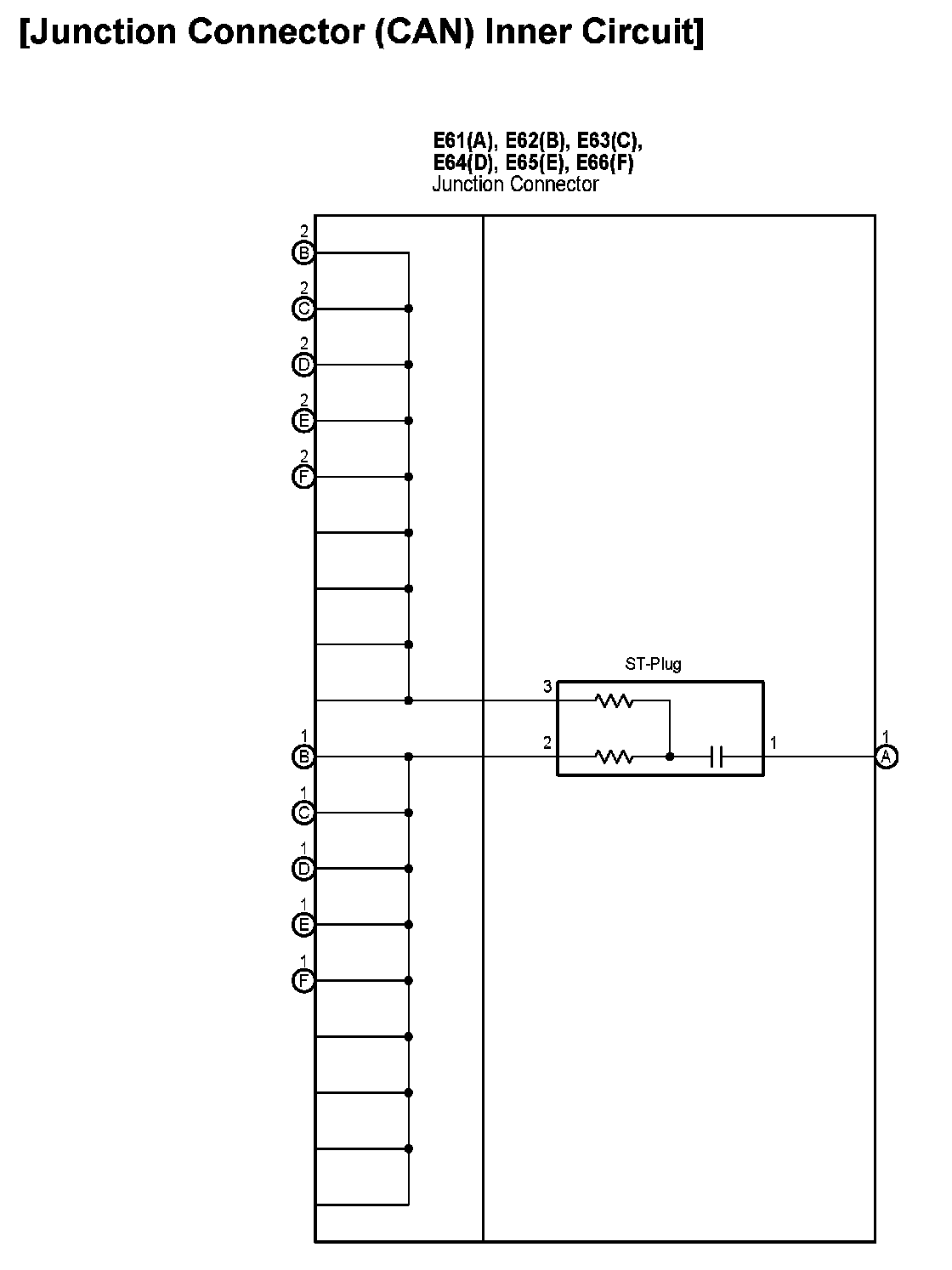

Junction Connector (CAN) Inner Circuit:
