Transmission Speed Sensor, A/T
Transmission Speed Sensor, A/T

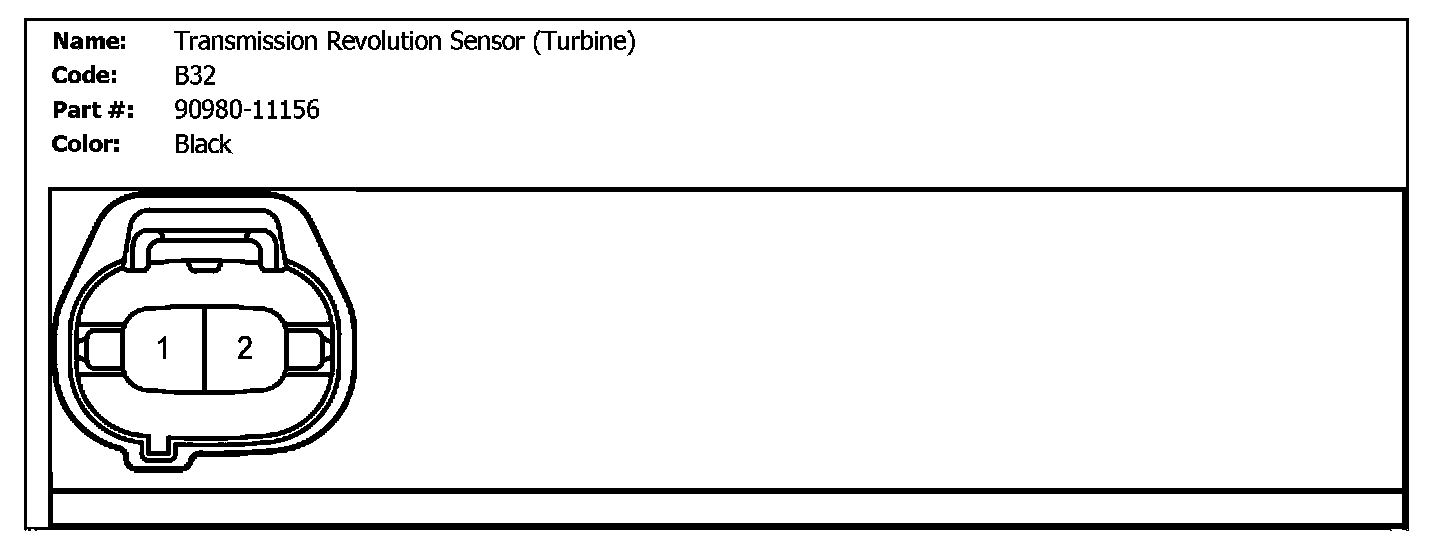

B32 (Transmission Revolution Sensor (Turbine)):

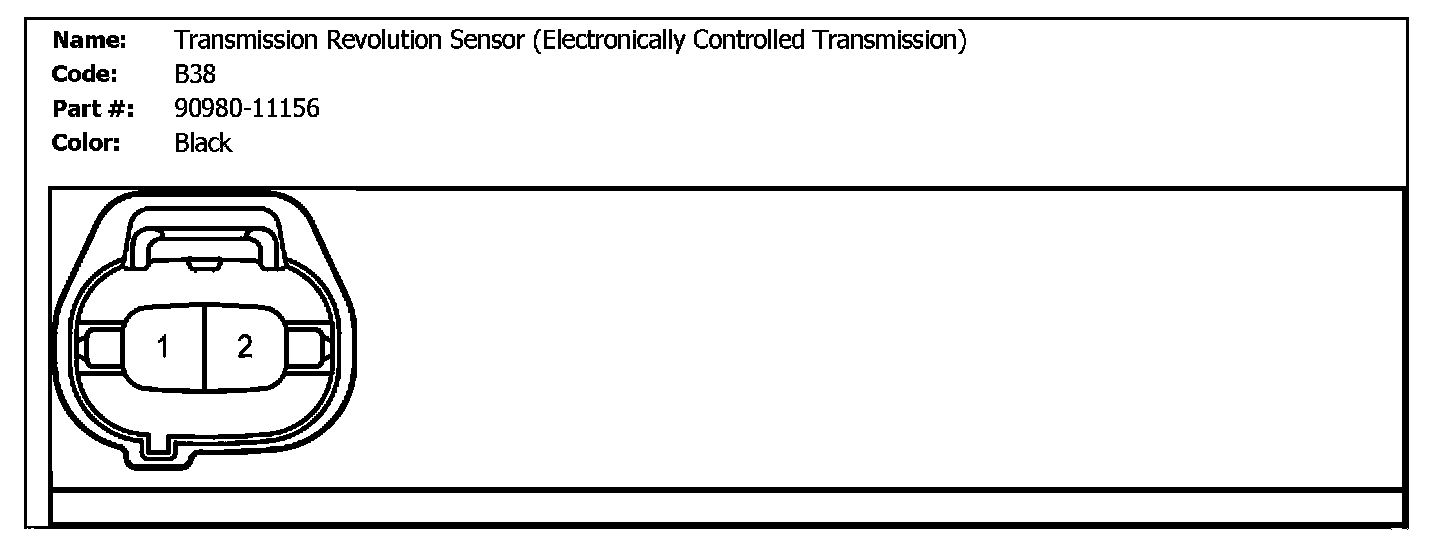

B38 (Transmission Revolution Sensor (Electronically Controlled Transmission)):
