Toyota Truck
>>
2008
>>
FJ Cruiser 4WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

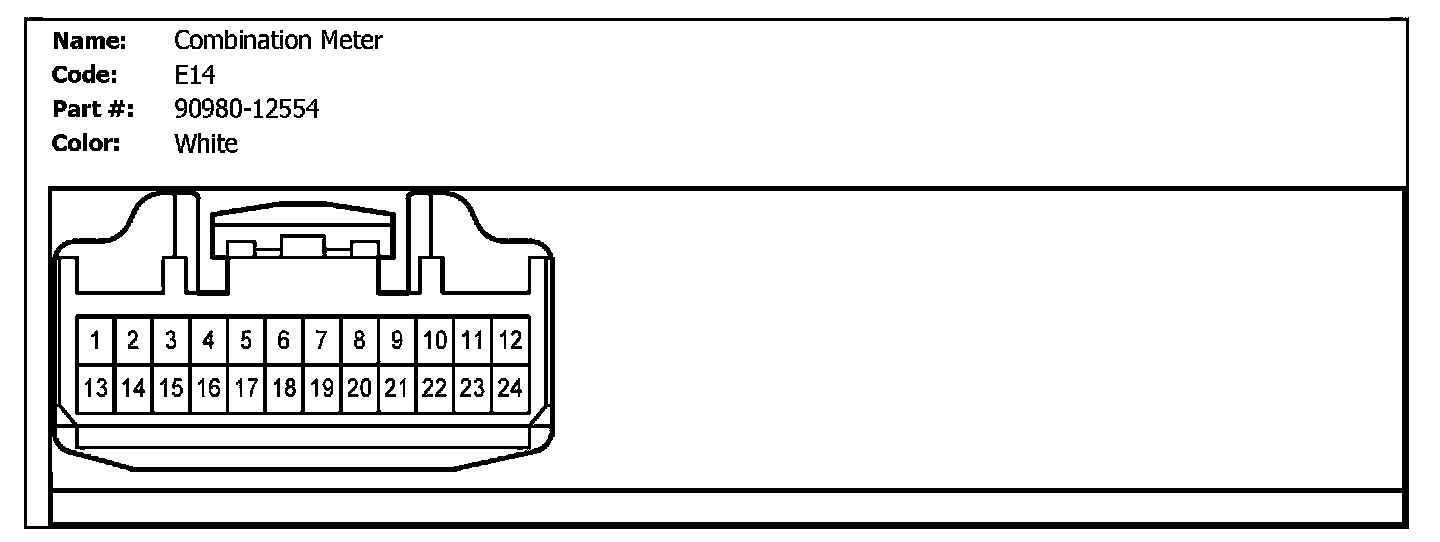

E14 (Combination Meter)
E14 (Combination Meter)
E14 (Combination Meter):
