Clutch Switch: Testing and Inspection

CRUISE CONTROL: CLUTCH SWITCH:

INSPECTION

1. INSPECT CLUTCH SWITCH

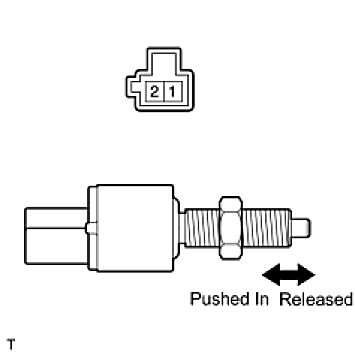

(a) Remove the clutch switch.

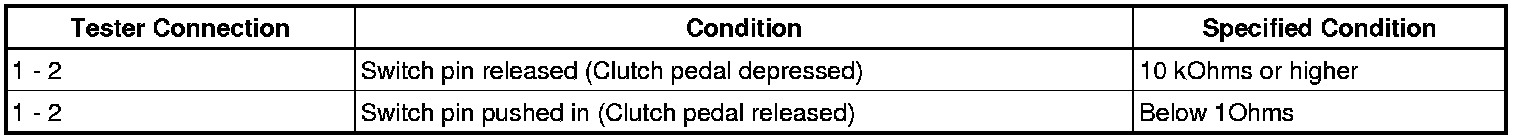

(b) Measure the resistance and check that the results in accordance with the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the clutch switch.
