BRAKE CONTROL: FRONT SPEED SENSOR: INSTALLATION

INSTALLATION

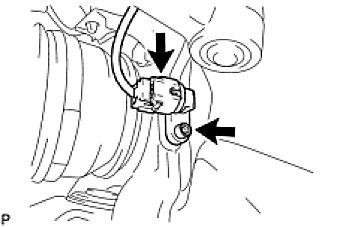

1. INSTALL FRONT SPEED SENSOR
(a) Using a 5 mm hexagon wrench, install the front speed sensor with the bolt.
Torque: 8.3 Nm (85 kgf-cm, 73 in-lbf)
NOTE: Make sure that the sensor tip is clean.

(b) Connect the skid control sensor wire.
2. INSTALL FRONT WHEEL
Torque: 112 Nm (1,137 kgf-cm, 82 ft-lbf)
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
4. CHECK VSC SENSOR SIGNAL
Test Mode Procedure
