WINDSHIELD / WINDOWGLASS: BACK WINDOW LOCK: INSTALLATION

INSTALLATION

1. INSTALL BACK WINDOW LOCK

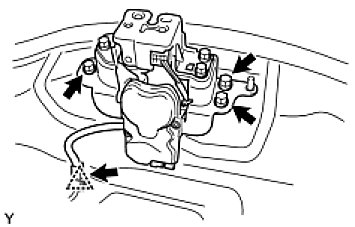

(a) Install the back window lock with the 3 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
(b) Connect the connector and clamp.
2. INSTALL BACK DOOR SERVICE HOLE COVER Reassembly

3. INSTALL BACK DOOR TRIM BOARD Reassembly

4. INSTALL DOOR TRIM RETAINER CAP Reassembly

5. INSTALL BACK DOOR TRIM COVER RH Reassembly

6. INSTALL BACK DOOR TRIM COVER LH
HINT: Use the same procedure as for the RH side.

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
