Removal

DOOR LOCK: DOOR CONTROL SWITCH (for Front Passenger Side): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT ARMREST BASE UPPER PANEL Disassembly

3. REMOVE DOOR CONTROL SWITCH

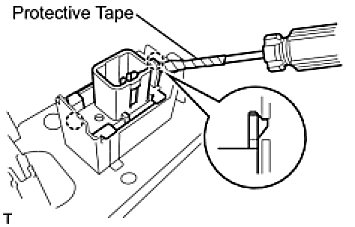

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the door control switch.
