Vehicle Stability Control System

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM:

DIAGNOSTIC TROUBLE CODE CHART
NOTE: When removing any parts, turn the ignition switch off.
HINT:
- If no abnormality is found when inspecting parts, check the skid control ECU and check for poor contact at ground points.
- If a DTC is displayed during the DTC check, check the circuit for the DTC listed in the table below. For details of each DTC, refer to the page indicated.
- When 2 or more DTCs are detected, perform circuit inspections one by one until the problem is identified.
- All DTCs in the table below are detected in accordance with 1 trip detection logic.

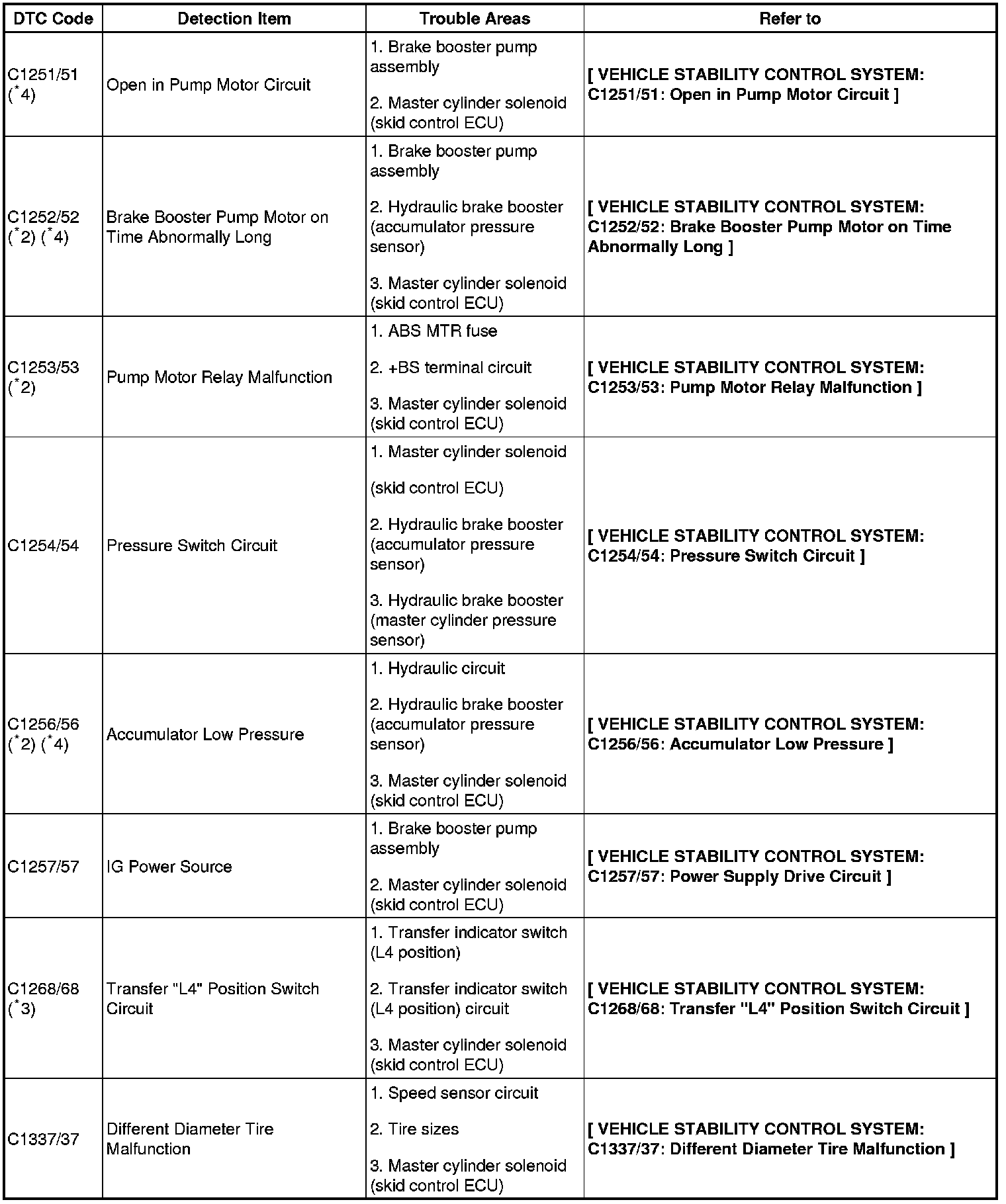

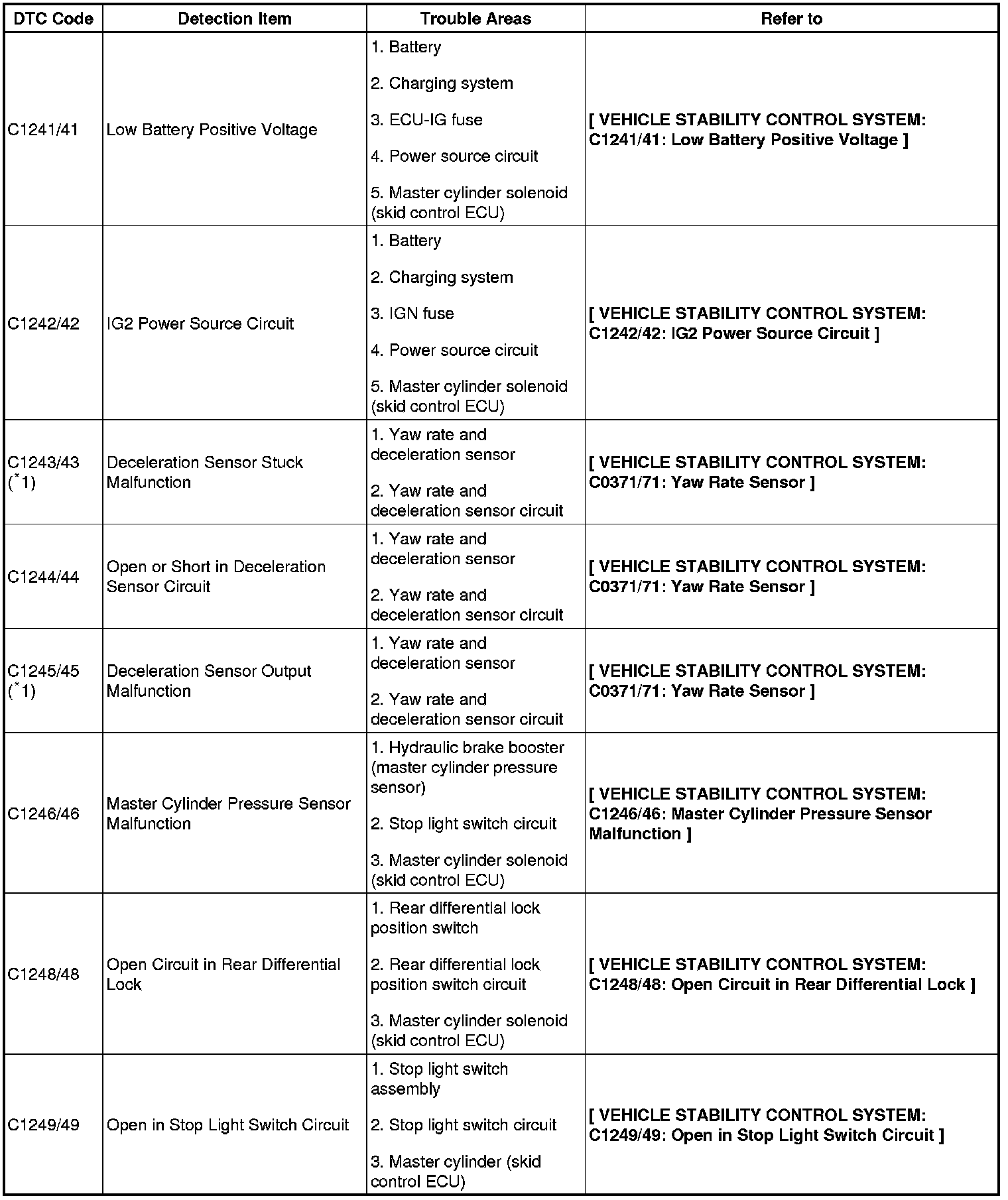

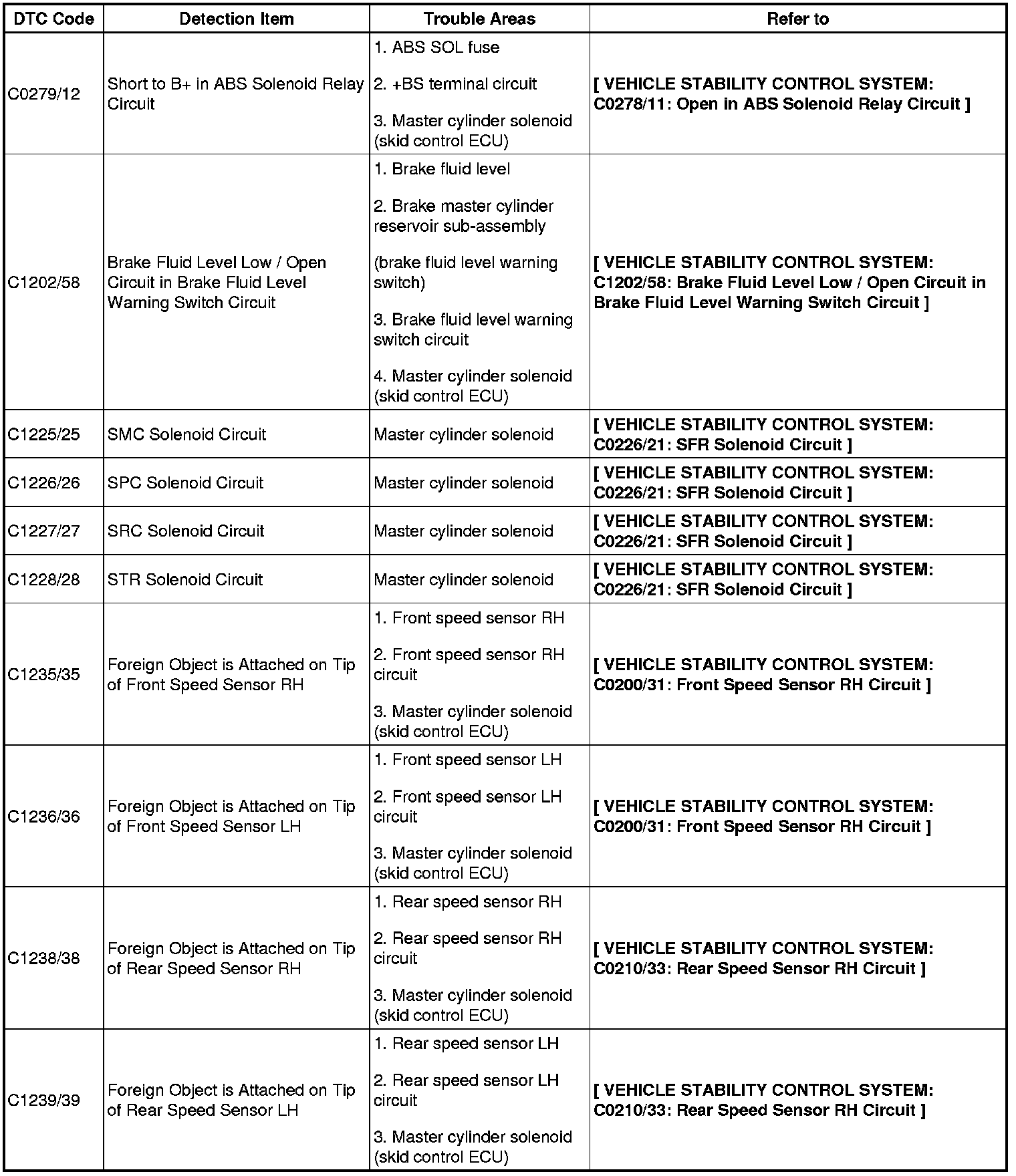

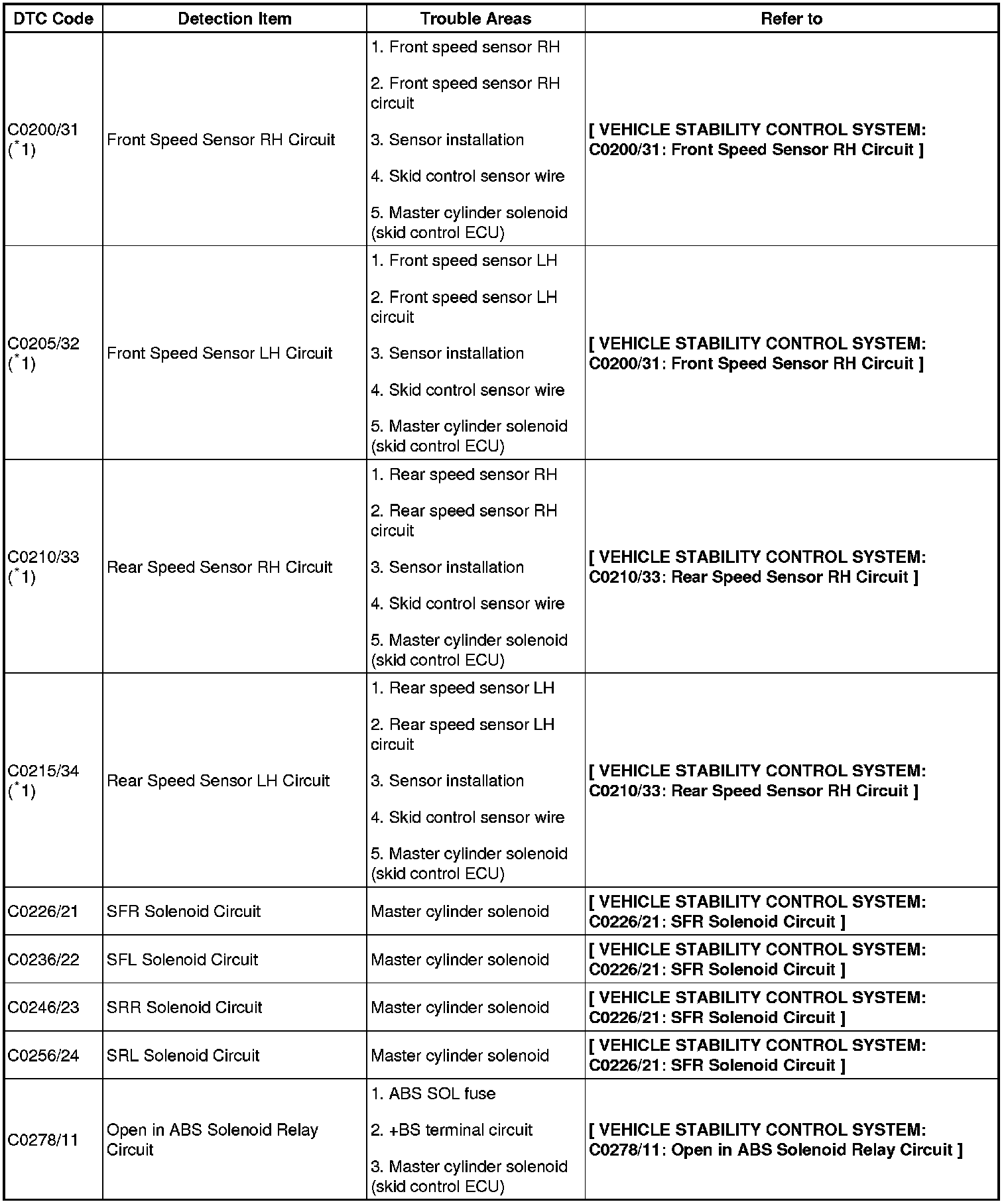

DTC chart of ABS





















HINT: (*1), (*2):
Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed.
- (*1):
1. Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
2. Clear the DTC.
- (*2):
1. Keep the vehicle stationary for 5 seconds or more and depress the brake pedal several times.
2. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
3. Clear the DTC.
- (*3): 4WD only
- (*4): Skid control buzzer sounds.

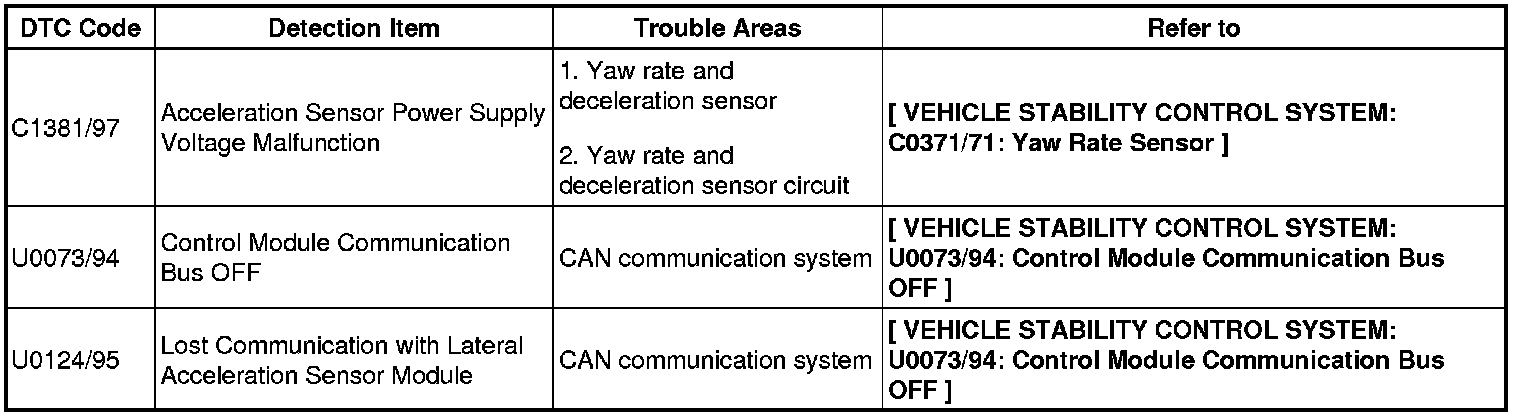

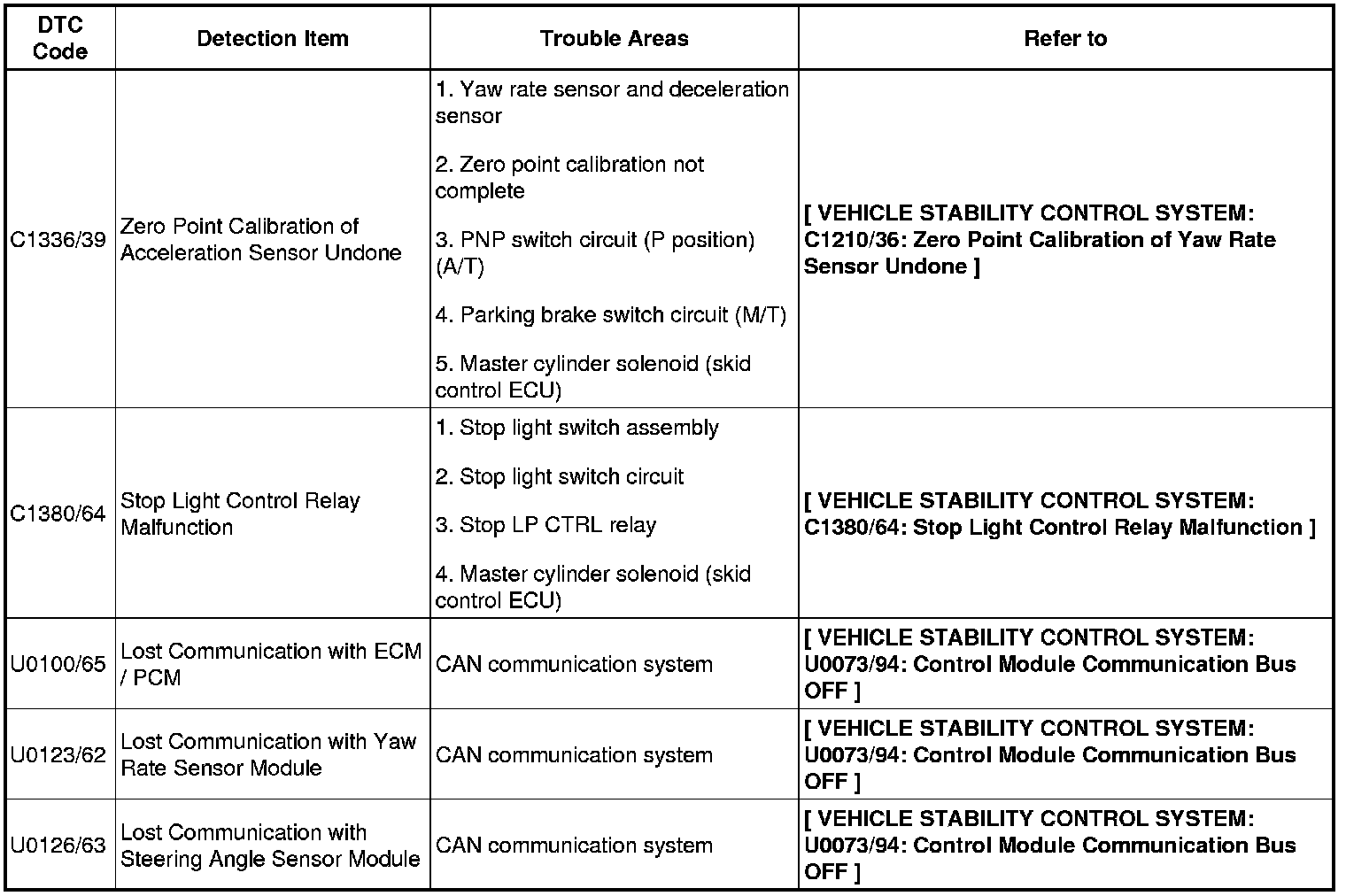

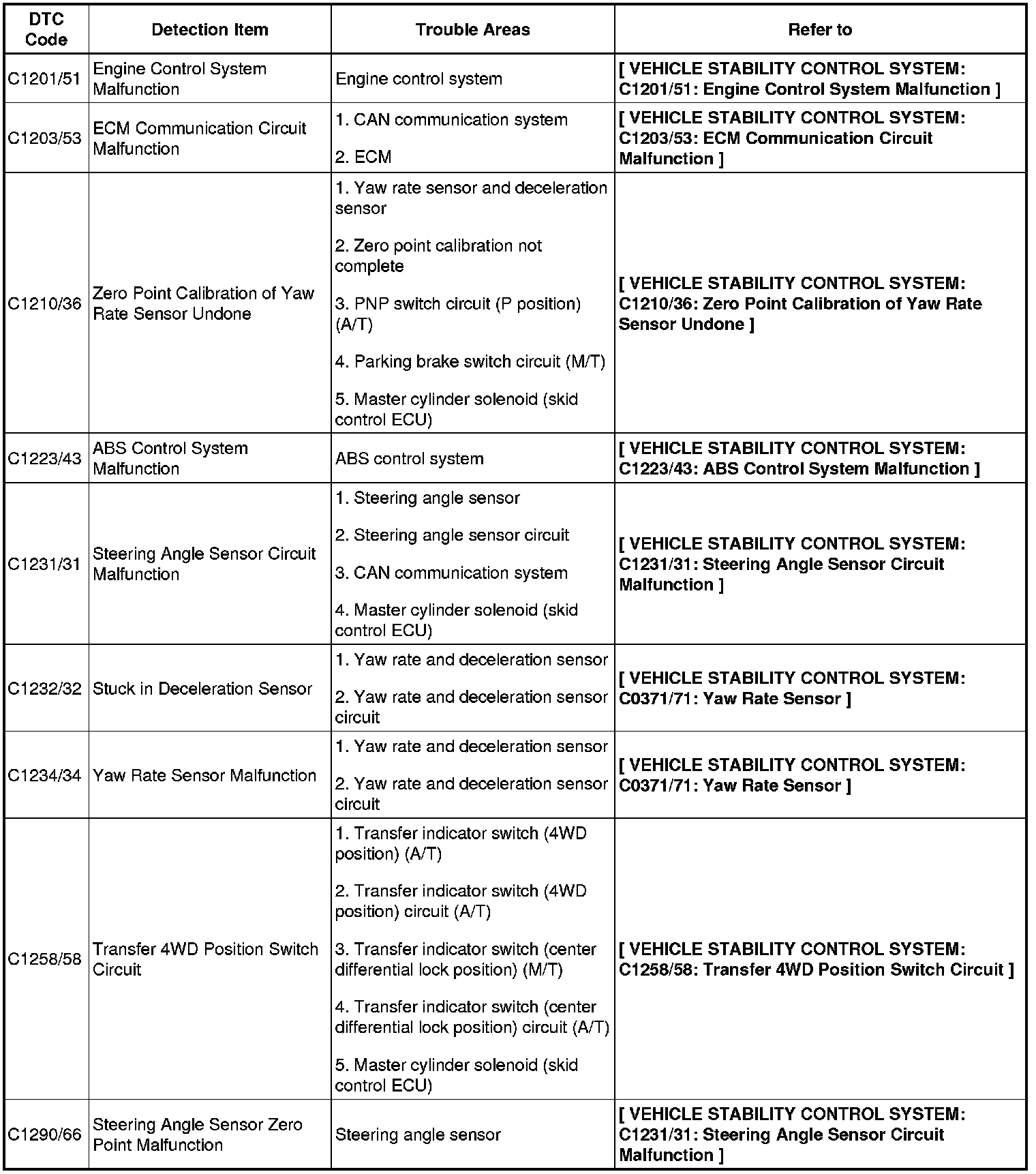

DTC chart of VSC

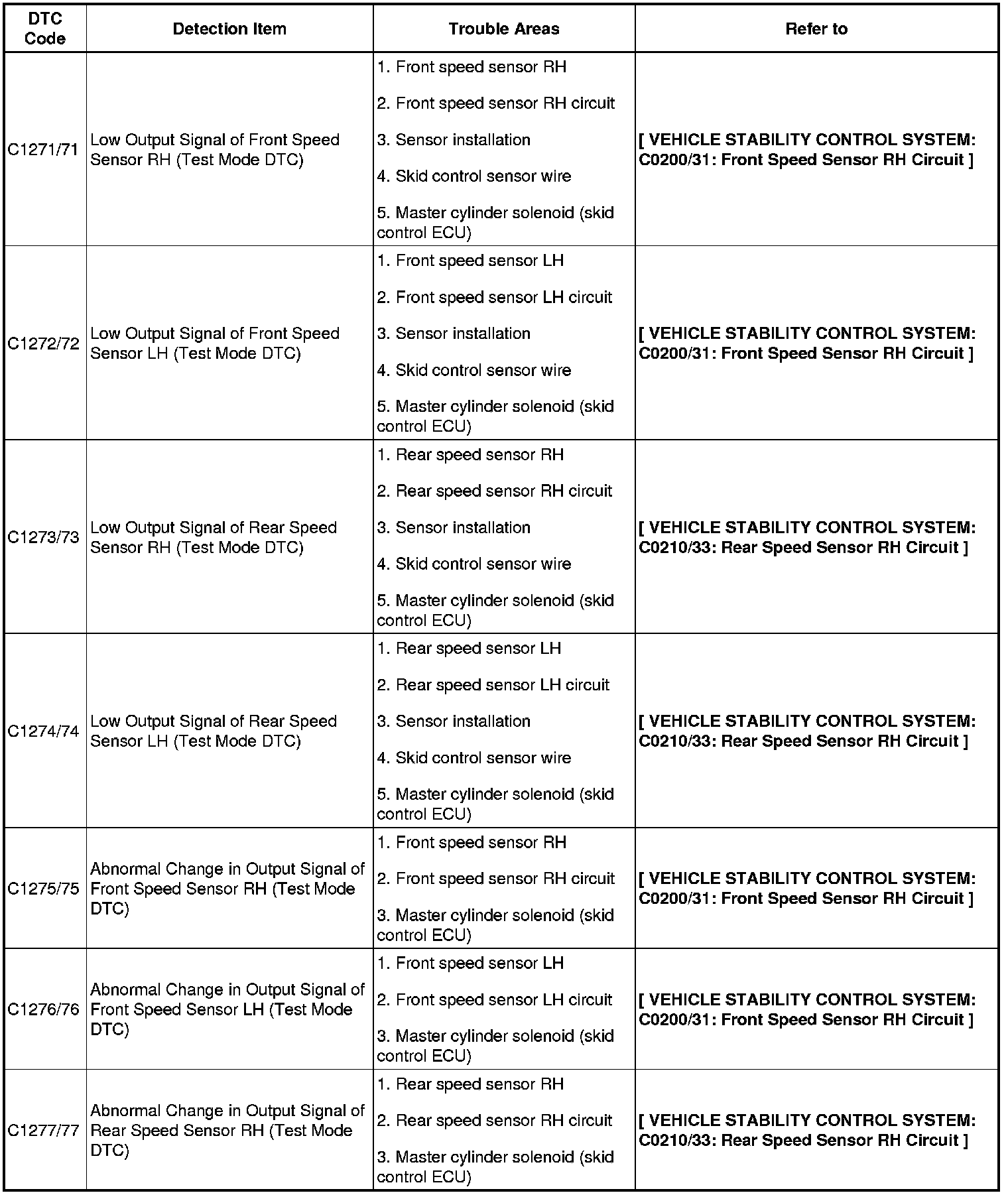

Test Mode DTC of ABS

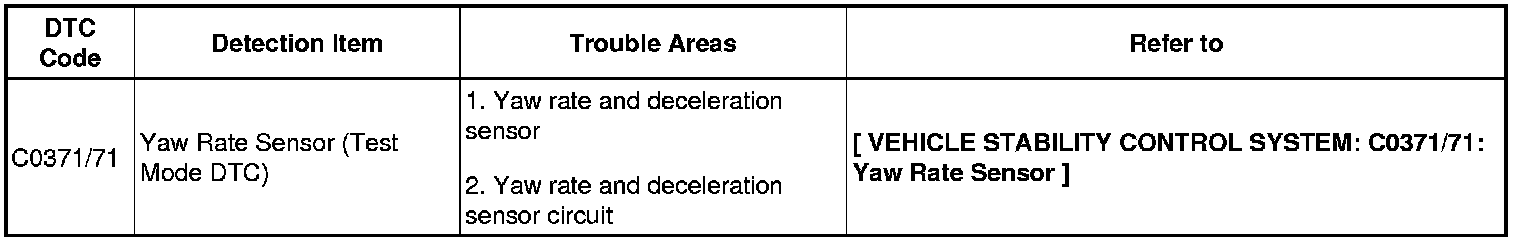

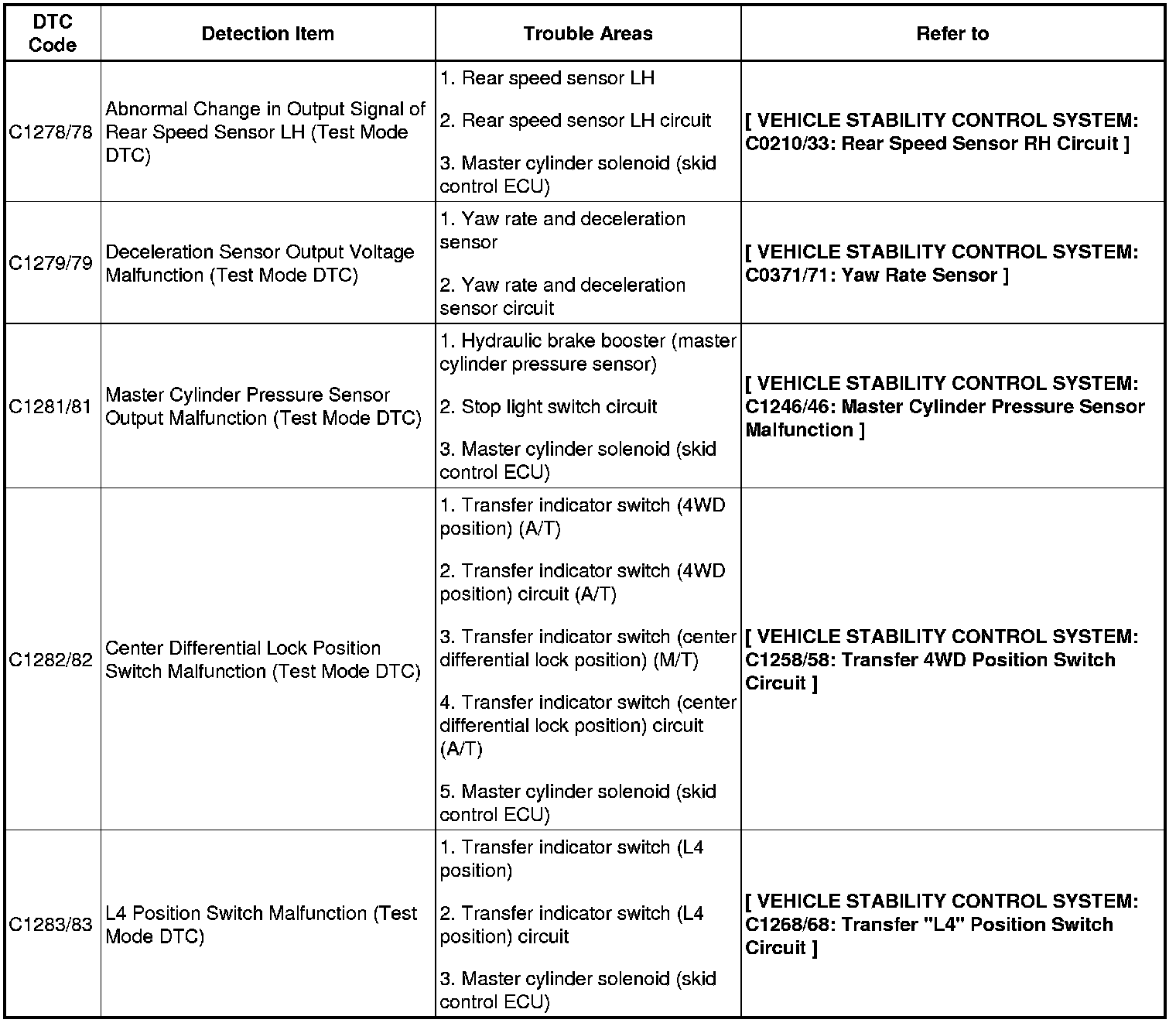

Test Mode DTC of VSC
