Removal

WIPER AND WASHER: WIPER SWITCH: REMOVAL


1. REMOVE STEERING COLUMN COVER LOWER Removal

2. REMOVE STEERING COLUMN COVER
3. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

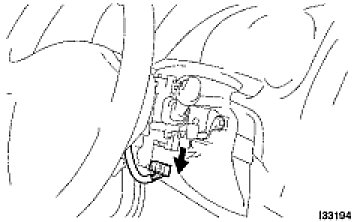

(a) Disconnect the connector.

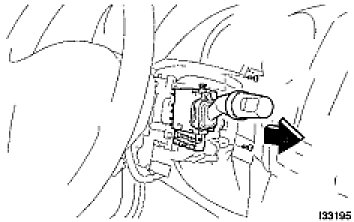

(b) Remove the 2 screws and windshield wiper switch assembly.
