WIPER AND WASHER: FRONT WIPER MOTOR: INSTALLATION

WIPER AND WASHER: FRONT WIPER MOTOR: INSTALLATION

1. INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY
(a) Apply MP grease to the clank arm pivot of the windshield wiper motor assembly.
(b) Install the windshield wiper motor assembly with 2 bolts.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
2. INSTALL WINDSHIELD WIPER MOTOR AND LINK
(a) Install the meshing of the rubber pin.
(b) Install the windshield wiper link assembly with the 2 bolts.
Torque: 7 Nm (71 kgf-cm, 62 in-lbf)
(c) Connect the connector.
3. INSTALL FR WIPER ARM LH






(a) Operate the wiper, and stop the windshield wiper motor assembly at the automatic stop position.

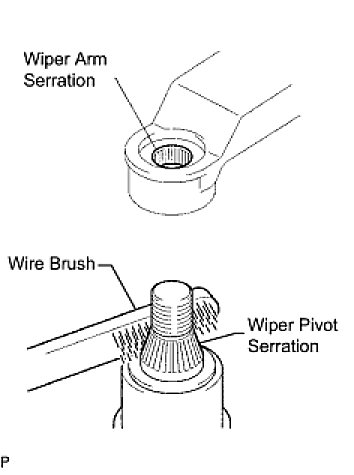

(b) Scrape off the serration part of the wiper arm with a round file or equivalent.
(c) Clean the wiper pivot serration with the wire brush.

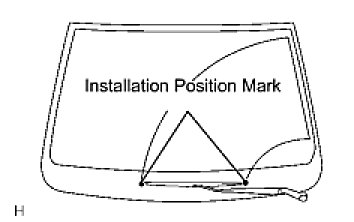

(d) Install the front wiper arm LH with a nut to the position shown in the illustration.
Torque: 25 Nm (255 kgf-cm, 18.4 ft-lbf)
HINT: Hold down the arm hinge with hand to fasten a nut.

4. INSTALL FR WIPER ARM RH






(a) Scrape off the serration part of the wiper arm with a round file or equivalent.
(b) Clean the wiper pivot serration with the wire brush.

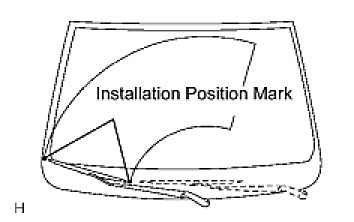

(c) Install the front wiper arm RH with a nut at the position shown in the illustration.
Torque: 25 Nm (255 kgf-cm, 18.4 ft-lbf)
HINT: Hold down the arm hinge with hand to fasten a nut.

(d) Operate the wiper while running the water or the washer fluid over the window, and check the wiping condition and that the rear wiper does not hit against the vehicle body.
