Windshield Washer Motor: Testing and Inspection

WIPER AND WASHER: WASHER MOTOR: ON-VEHICLE INSPECTION

WIPER AND WASHER: WASHER MOTOR: ON-VEHICLE INSPECTION

1. INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY






(a) Operation Check
(1) Pour the washer fluid into the washer jar with the washer motor and the pump installed to the washer jar assembly.

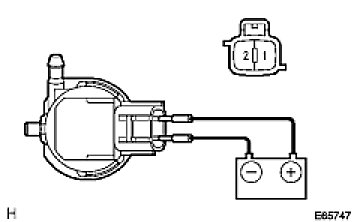

(2) Connect the battery (+) to terminal 1 of the washer motor and the pump, the battery (-) to terminal 2 of the washer motor and the pump. Check that the water comes out from the washer jar.
