EXTERIOR: BACK DOOR GLASS WEATHERSTRIP: REMOVAL

EXTERIOR: BACK DOOR GLASS WEATHERSTRIP: REMOVAL

1. REMOVE BACK DOOR TRIM PANEL ASSEMBLY
(a) Remove the assist strap hole cover.
(b) Remove the assist strap assembly RH.
(c) Remove the back door trim panel.
2. REMOVE BACK DOOR GLASS WEATHERSTRIP ASSEMBLY OUTER

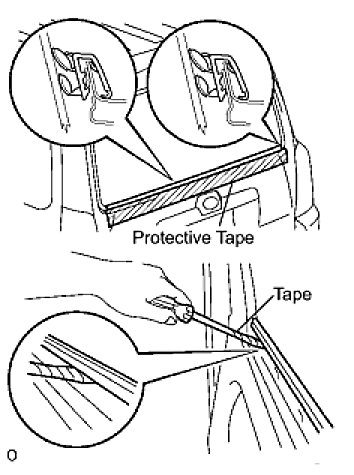

(a) Put protective tape under the glass weatherstrip.
(b) Using a screwdriver or moulding remover, disengage the claw and remove the glass weatherstrip outer.
HINT:
- Tape the screwdriver tip before use.
- Put the screwdriver on either edge of the door glass weatherstrip.
