DIFFERENTIAL: REAR DIFFERENTIAL CARRIER ASSEMBLY: INSTALLATION

DIFFERENTIAL: REAR DIFFERENTIAL CARRIER ASSEMBLY: INSTALLATION

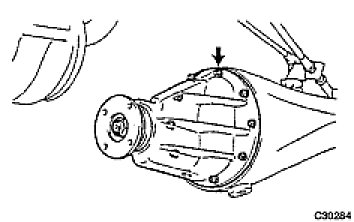

1. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY






(a) Clean the contact surfaces of the rear differential carrier assembly and the rear axle housing assembly.
(b) Install the new rear differential carrier gasket and the differential carrier assembly with the 10 nuts and 10 washers.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
2. INSTALL REAR AXLE SHAFT WITH BACKING PLATE Installation

3. INSTALL PARKING BRAKE SHOE Reassembly

4. INSTALL PARKING BRAKE SHOE STRUT LH
5. INSTALL PARKING BRAKE SHOE STRUT COMPRESSION SPRING
6. INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING Reassembly

7. INSTALL REAR DISC
8. CONNECT REAR DISC BRAKE CALIPER ASSEMBLY LH
(a) Install the rear disc brake caliper assembly LH with the 2 bolts.
Torque: 88 Nm (897 kgf-cm, 65 ft-lbf)
9. CONNECT REAR DISC BRAKE CALIPER ASSEMBLY RH
(a) Install the rear disc brake caliper assembly RH with the 2 bolts.
Torque: 88 Nm (897 kgf-cm, 65 ft-lbf)
10. CONNECT REAR SPEED SENSOR LH Installation

11. CONNECT REAR SPEED SENSOR RH
HINT: Install the RH side by following the same procedures as the LH side.

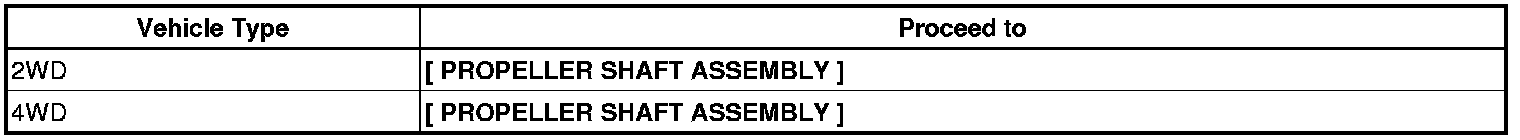

12. INSTALL PROPELLER SHAFT ASSEMBLY

See procedure





13. FILL UP RESERVOIR WITH BRAKE FLUID
14. BLEED MASTER CYLINDER
15. BLEED BRAKE LINE
16. BLEED BRAKE FLUID LEVEL IN RESERVOIR
17. CHECK FOR BRAKE FLUID LEAKAGE
18. FILL UP DIFFERENTIAL OIL Adjustments

19. INSPECT DIFFERENTIAL OIL Adjustments

20. INSTALL REAR WHEEL
Torque: 112 Nm (1,142 kgf-cm, 83 in-lbf)
21. INSPECT AND ADJUST PARKING BRAKE LEVER TRAVEL
HINT: Adjustments

22. INSPECT CHECK ABS SENSOR SIGNAL
HINT: Test Mode Procedure
