Curiosii for ever!: Car repair manuals for everyone.
Home >> Toyota Truck >> 2008 >> 4 Runner 2WD V6-4.0L (1GR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Service and Repair >> Removal and Replacement >> Components

Components

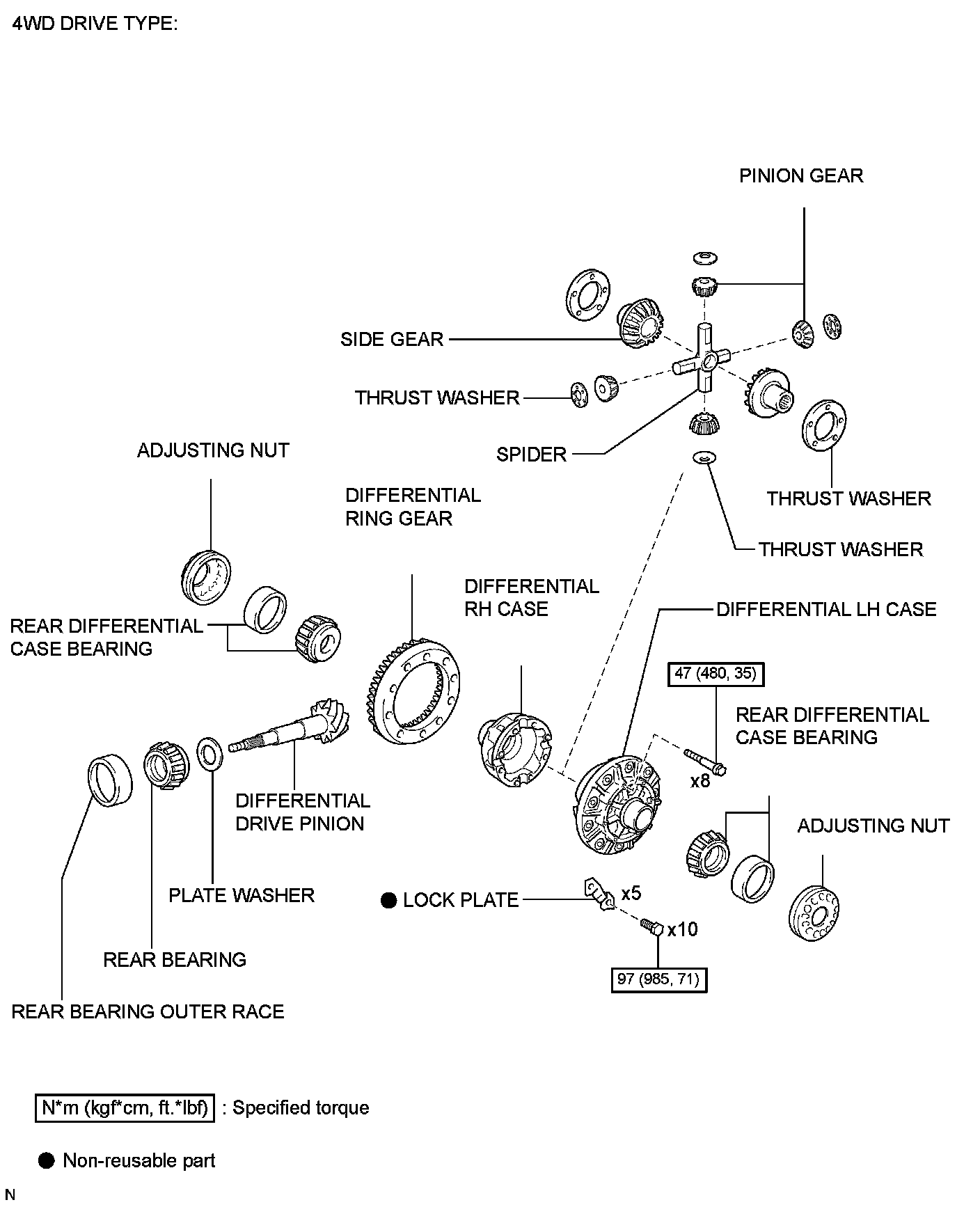

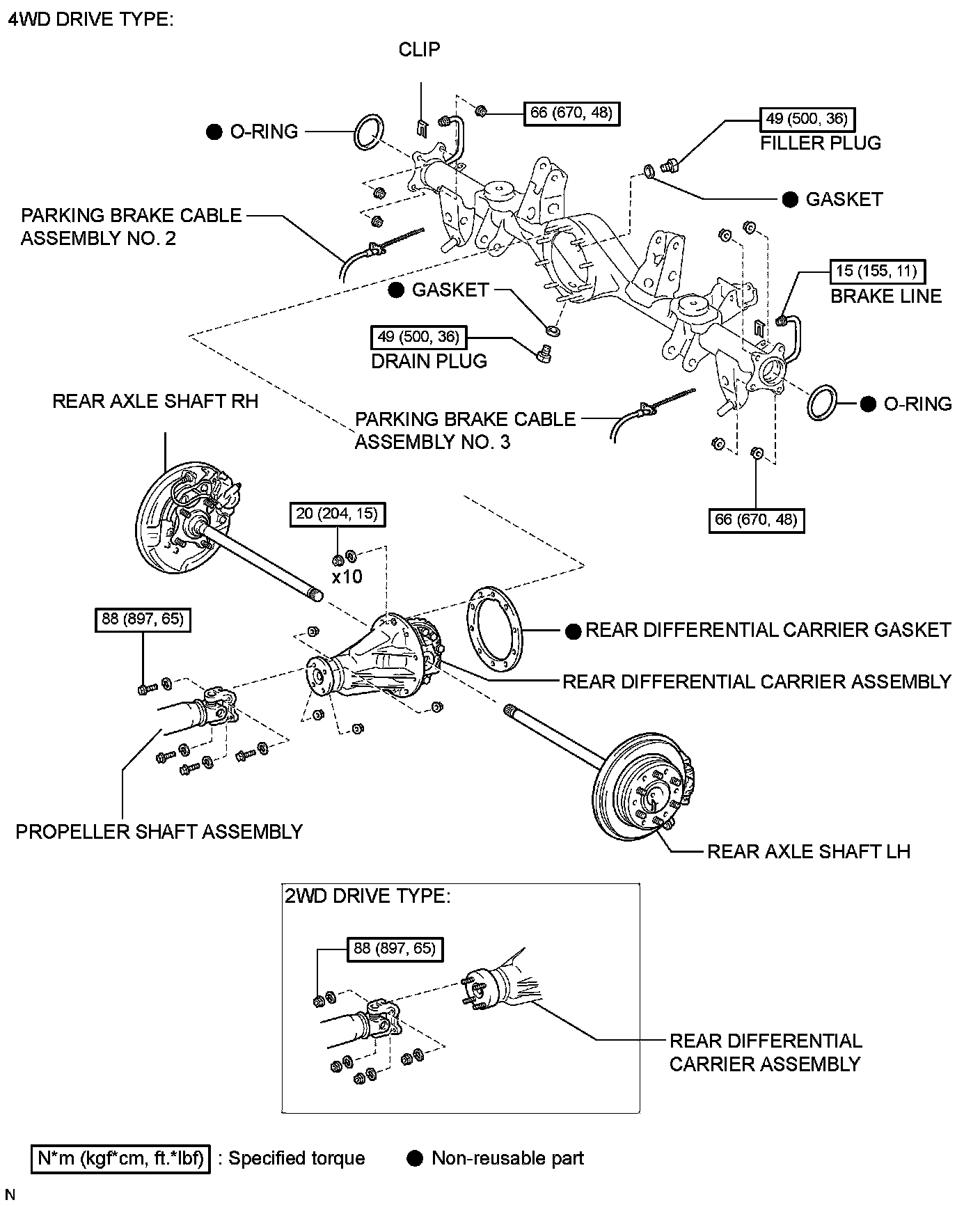

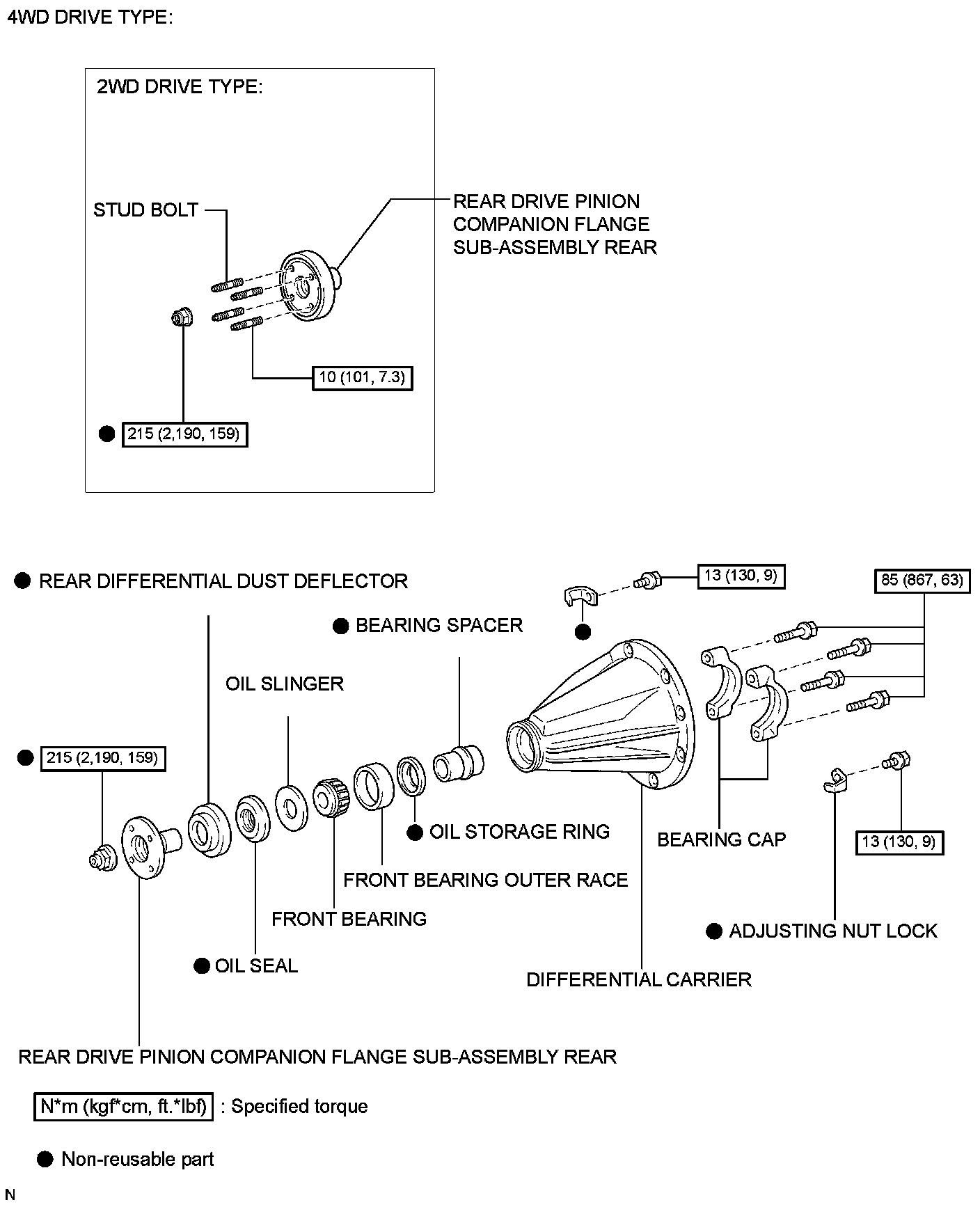

DIFFERENTIAL: REAR DIFFERENTIAL CARRIER ASSEMBLY: COMPONENTS

DIFFERENTIAL: REAR DIFFERENTIAL CARRIER ASSEMBLY: COMPONENTS
