Transmission Speed Sensor: Testing and Inspection

A750E AUTOMATIC TRANSMISSION: SPEED SENSOR: INSPECTION

A750E AUTOMATIC TRANSMISSION: SPEED SENSOR: INSPECTION

1. INSPECT SPEED SENSOR (NT SENSOR)

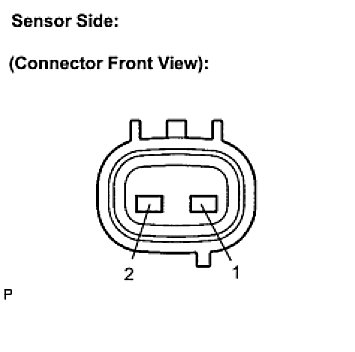

(a) Disconnect the speed sensor connector from the transaxle.

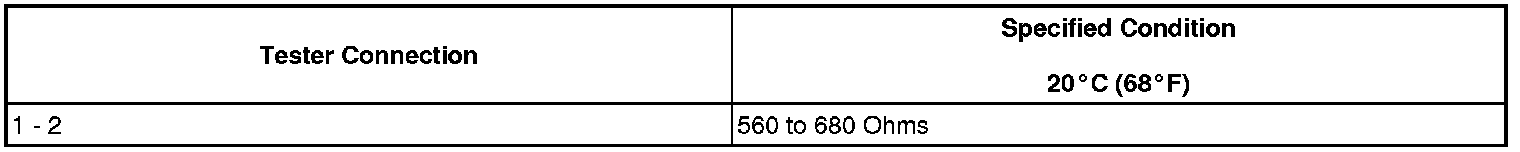

(b) Measure the resistance according to the value(s) in the table below.
Resistance:






2. INSPECT SPEED SENSOR (SP2 SENSOR)






(a) Disconnect the speed sensor connector from the transaxle.
(b) Measure the resistance according to the value(s) in the table below.
Resistance:
