Installation

A750E AUTOMATIC TRANSMISSION: SPEED SENSOR: INSTALLATION

A750E AUTOMATIC TRANSMISSION: SPEED SENSOR: INSTALLATION

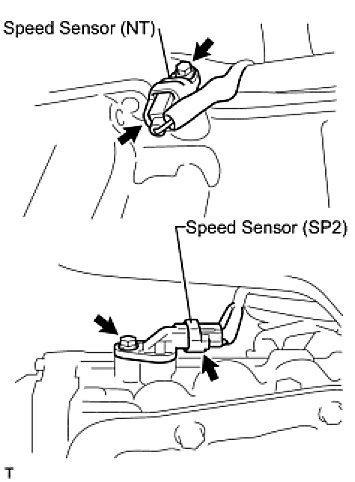

1. INSTALL SPEED SENSOR






(a) Coat a new O-ring with ATF.
(b) Install the speed sensor with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(c) Connect the connector.
