Installation

A750E AUTOMATIC TRANSMISSION: TRANSMISSION CONTROL CABLE: INSTALLATION

A750E AUTOMATIC TRANSMISSION: TRANSMISSION CONTROL CABLE: INSTALLATION

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

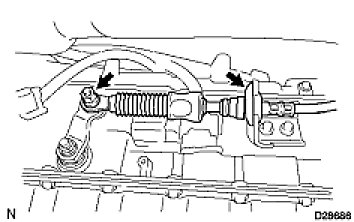

(a) Install the transmission control cable assembly with the nut.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
(b) Install the transmission control cable bracket and lock plate.

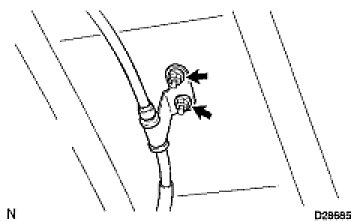

(d) Connect the transmission control cable with the 2 bolts to body.

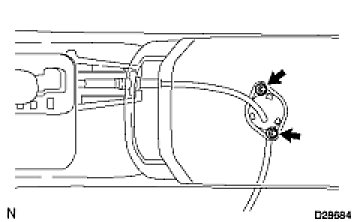

(e) Connect the transmission control cable with the lock plate to floor shift assembly.

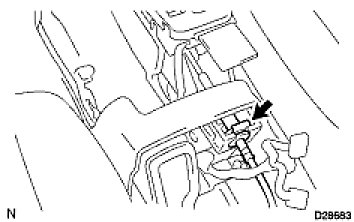

(f) Install the transmission control cable to floor shift assembly.
2. INSTALL REAR CONSOLE BOX ASSEMBLY
3. INSTALL NO.2 CONSOLE UPPER PANEL GARNISH
4. INSTALL NO.1 CONSOLE UPPER PANEL GARNISH
5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
6. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
7. INSPECT SHIFT LEVER POSITION
HINT: Adjustments

8. ADJUST SHIFT LEVER POSITION
HINT: Adjustments
