Instruments - Compass Calibration Procedure

PRE-DELIVERY SERVICE
PD059-07
REVISED

Title:
INITIAL CALIBRATION OF COMPASS
DURING PDS

Models:
'08 4Runner

June 13, 2007

TSB REVISION NOTICE:

^ August 17, 2007: The zone reference illustration in step 2 has been updated.

Previous versions of this TSB should be discarded.

Introduction





Some 2008 model year 4Runner vehicles are equipped with a compass in the rear view mirror. Use the following procedure to complete initial calibration of the compass during Pre-Delivery Service (PDS).

Applicable Vehicles

^ 2008 model year 4Runner vehicles.

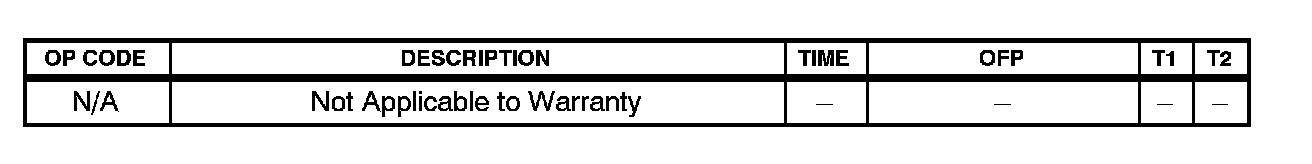

Warranty Information

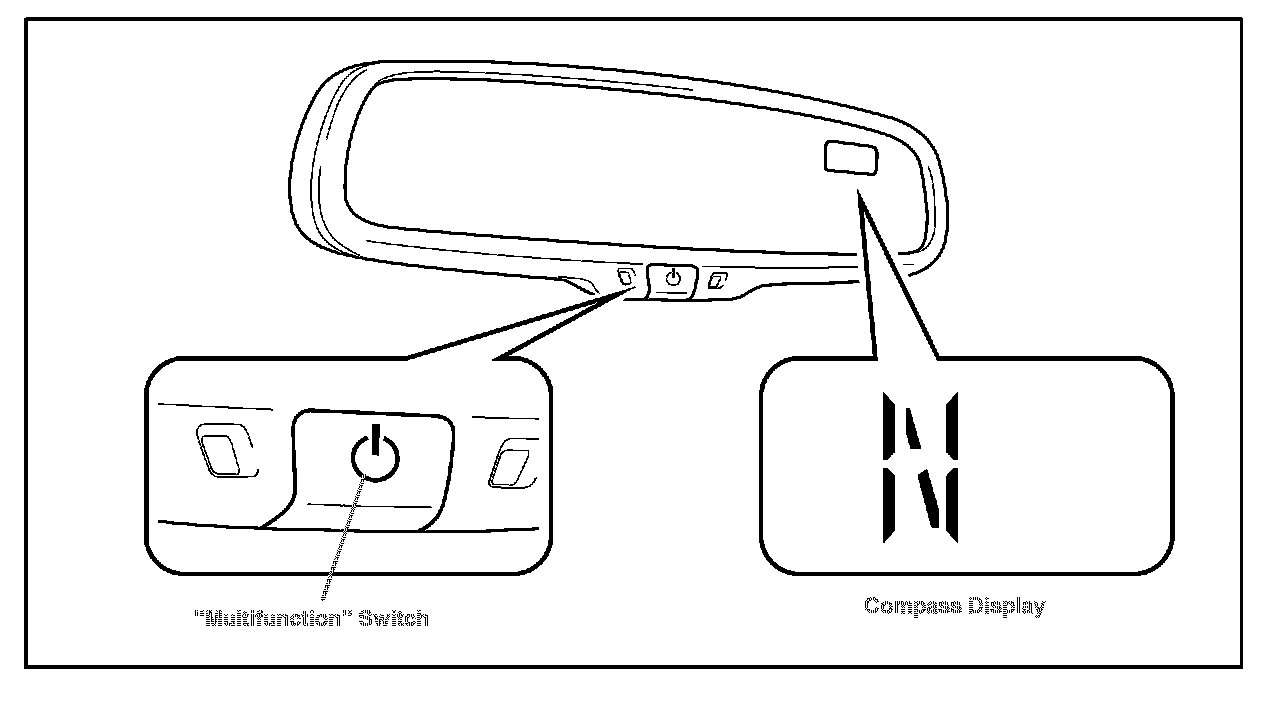

Compass Calibration Procedure

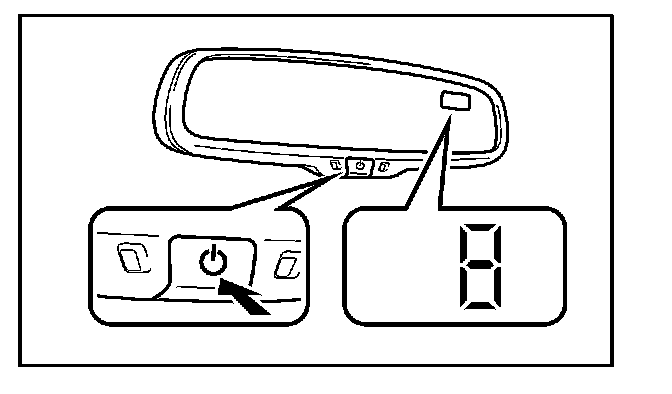

1. Turn the ignition switch to the ~ON" position and push and hold the switch for 6 seconds until the zone number appears on the compass display.

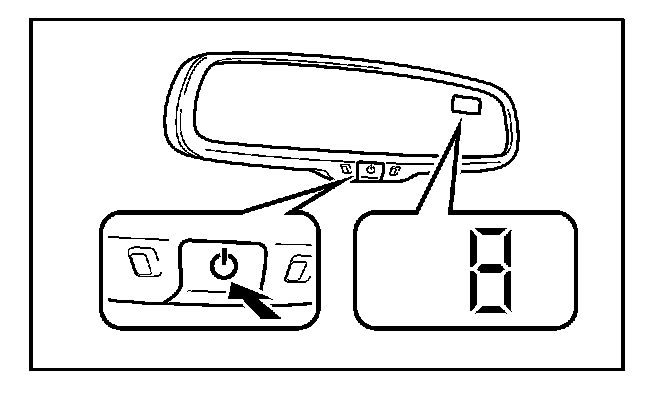

2. Push the switch to select the number of the zone where the vehicle is located.

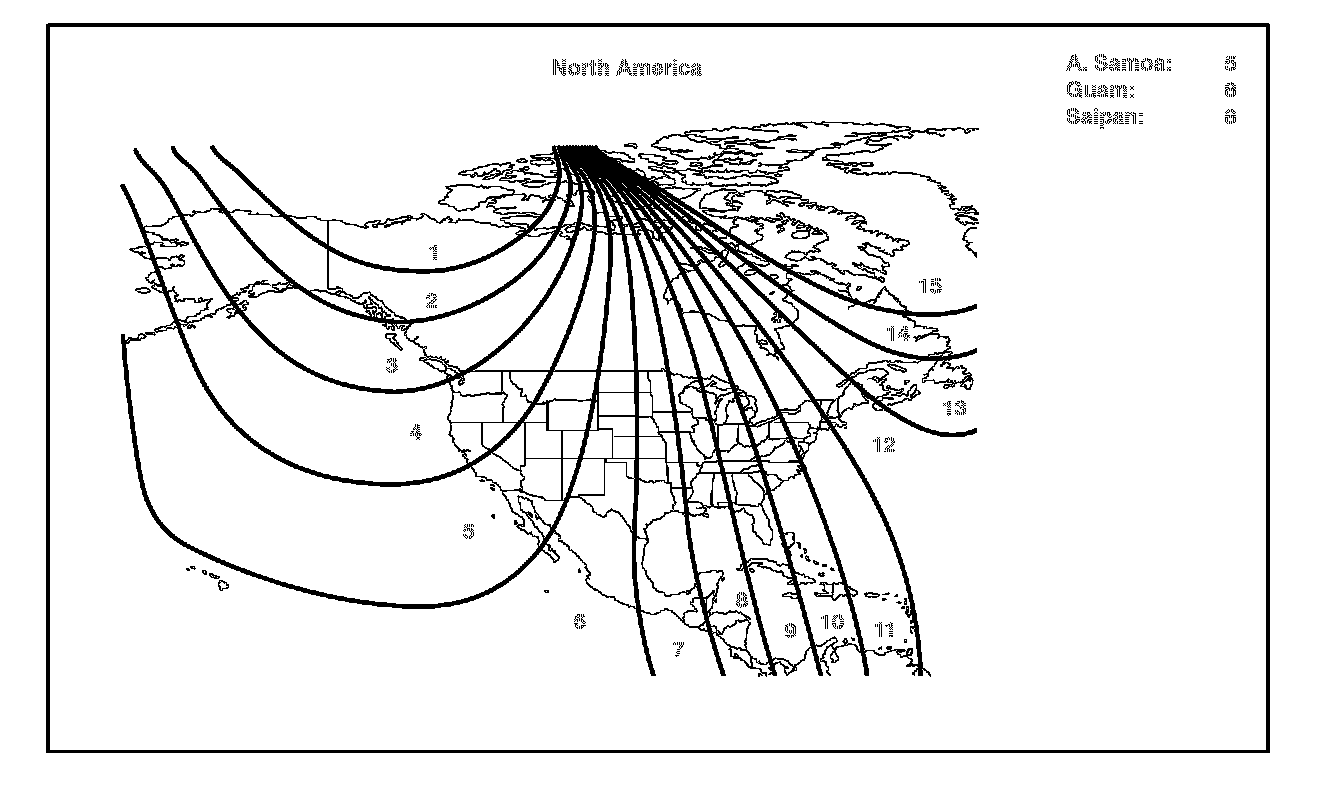

See the map for zone reference.

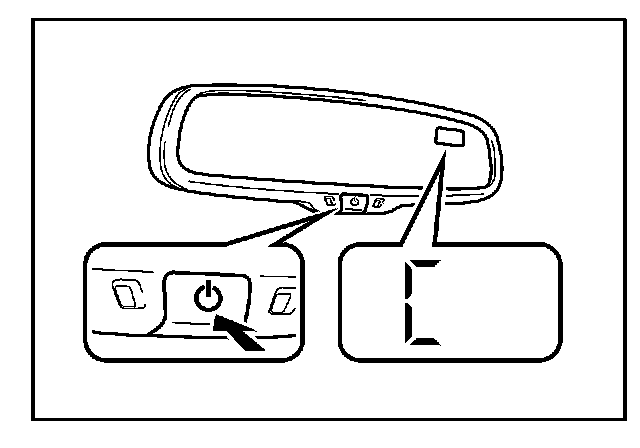

3. Start the engine and push and hold the switch for about 9 seconds until "C" appears on the display.

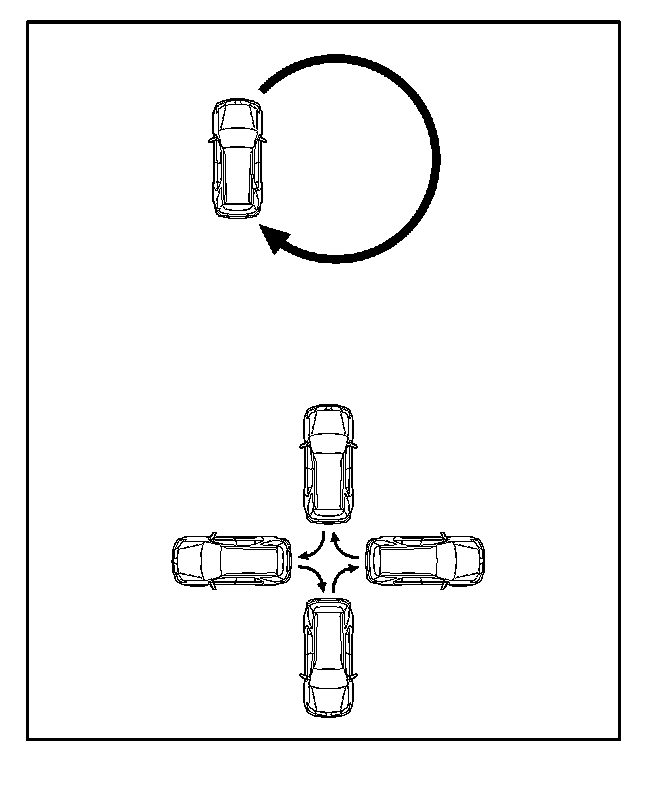

4. Drive the vehicle slowly at 5 mph (8 km/h), or less, in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, turn the car around as shown, doing two three-point turns in succession.

After driving in 1 to 3 circles in the above method, calibration is complete with the direction shown on the display.

NOTE:

^ Do NOT perform calibration of the compass in a place where the Earth's magnetic field is subject to interference (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.)

^ During calibration, do NOT operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
