Installation









1GR-FE STARTING: STARTER (for Cold Area): INSTALLATION

1GR-FE STARTING: STARTER

1. INSTALL STARTER ASSEMBLY (for 2WD)
(a) Install the starter assembly with the 2 bolts.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)
(b) Connect the wire harness to the terminal 30 and install the nut.
Torque: 9.8 Nm (100 kgf-cm, 7 ft-lbf)
(c) Connect the terminal 50 to the starter assembly.
2. CONNECT WIRE HARNESS (for 2WD)
(a) Connect the wire harness to the cylinder block and install the bolt.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)
3. INSTALL NO. 2 MANIFOLD STAY (for 2WD)
(a) Install the No. 2 manifold stay with the 3 bolts.
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)
4. INSTALL ENGINE REAR UNDER COVER ASSEMBLY (for 2WD)
(a) Install the engine rear under cover assembly with the 4 bolts.
Torque: 29 Nm (296 kgf-cm, 21 ft-lbf)
5. CONNECT BATTERY NEGATIVE TERMINAL (for 2WD)
(a) Connect the battery negative terminal.
6. INSTALL STARTER ASSEMBLY (for 4WD)
(a) Install the starter assembly with the 2 bolts.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)
(b) Connect the wire harness to the terminal 30 and install the nut.
Torque: 9.8 Nm (100 kgf-cm, 7 ft-lbf)
(c) Connect the terminal 50 to the starter assembly.

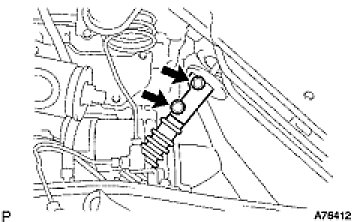

7. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY (for 4WD)






(a) Install the steering sliding yoke to No. 2 steering intermediate shaft.
(b) Install the bolt B and tighten the bolt B and A.
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)
8. INSTALL FRONT FENDER REAR SPLASH SHIELD LH (for 4WD)
(a) Install the front fender rear splash shield LH with the 5 clips.
9. INSTALL NO. 2 FRONT EXHAUST PIPE ASSEMBLY (for 4WD)
(a) Install 2 new gaskets and No. 2 exhaust manifold with the 2 bolts and 2 nuts.
Nut - Torque: 62 Nm (630 kgf-cm, 46 ft-lbf)
Bolt - Torque: 48 Nm (490 kgf-cm, 35 ft-lbf)
(b) Connect the heated oxygen sensor (bank 2) connector.
10. INSTALL ENGINE REAR UNDER COVER ASSEMBLY (for 4WD)
(a) Install the engine rear under cover assembly with the 4 bolts.
Torque: 29 Nm (296 kgf-cm, 21 ft-lbf)
11. CONNECT BATTERY NEGATIVE TERMINAL (for 4WD)
(a) Connect the battery negative terminal.
