Removal

1GR-FE CHARGING: GENERATOR: REMOVAL

1GR-FE CHARGING: GENERATOR: REMOVAL

1. REMOVE V-BANK COVER

2. REMOVE ENGINE NO. 1 UNDER COVER SUB-ASSEMBLY
(a) Remove the 4 bolts and engine under cover sub-assembly No. 1.
3. REMOVE FAN AND GENERATOR V BELT

4. REMOVE BATTERY

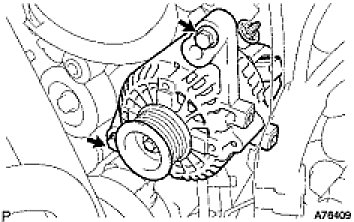

5. REMOVE GENERATOR ASSEMBLY

(a) Disconnect the wire harness.

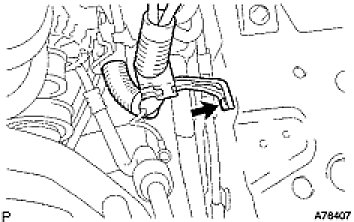

(1) Remove the bolt and wire harness stay.
(2) Disconnect the connector from the generator assembly.
(3) Remove the terminal cap and nut.
(4) Disconnect the wire harness from the terminal B.

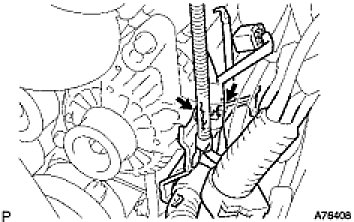

(b) Remove the 2 bolts and wire harness clamp bracket from the generator assembly.
