Removal

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: REMOVAL

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: REMOVAL

1. PRECAUTION
CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat) Removal and Installation

4. REMOVE FRONT SEAT ASSEMBLY (for Power Seat) Removal and Installation

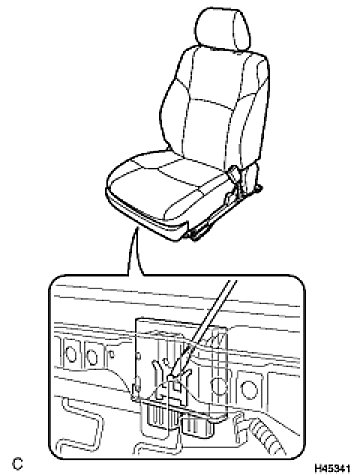

5. REMOVE OCCUPANT CLASSIFICATION ECU
(a) Disconnect the 2 connectors from the occupant classification ECU.






(b) Using a screwdriver, remove the occupant classification ECU.
