Removal

SUPPLEMENTAL RESTRAINT SYSTEM: SEAT POSITION SENSOR: REMOVAL

SUPPLEMENTAL RESTRAINT SYSTEM: SEAT POSITION SENSOR: REMOVAL

1. PRECAUTION
CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH (for Manual Seat) Removal and Installation

4. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH (for Power Seat) Removal and Installation

5. REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH (for Manual Seat) Removal and Installation

6. REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH (for Power Seat)
7. REMOVE SEAT TRACK OUTER COVER LH (for Manual Seat) Removal and Installation

8. REMOVE SEAT TRACK OUTER COVER LH (for Power Seat) Removal and Installation

9. REMOVE SEAT TRACK BRACKET COVER INNER LH (for Manual Seat) Removal and Installation

10. REMOVE SEAT TRACK BRACKET COVER INNER LH (for Power Seat) Removal and Installation

11. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat) Removal and Installation

12. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat) Removal and Installation

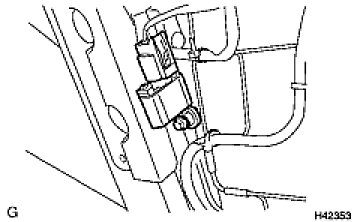

13. REMOVE SEAT POSITION SENSOR






(a) Disconnect the connector from the seat position sensor.
(b) Remove the bolt and seat position sensor.
