Installation

SUPPLEMENTAL RESTRAINT SYSTEM: REAR AIRBAG SENSOR: INSTALLATION

SUPPLEMENTAL RESTRAINT SYSTEM: REAR AIRBAG SENSOR: INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL REAR AIRBAG SENSOR LH
(a) Check that the ignition switch is off.
(b) Check that the battery negative (-) terminal is disconnected.
CAUTION: After disconnecting the negative battery terminal, wait for at least 90 seconds before starting the operation.

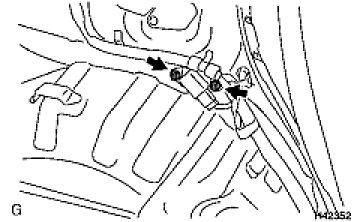

(c) Install the rear airbag sensor LH with the 2 bolts.
Torque: 17.5 Nm (179 kgf-cm, 13 ft-lbf)
CAUTION:
- If the rear airbag sensor LH has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the rear airbag sensor LH, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.


(d) Check that there is no looseness in the installation parts of the rear airbag sensor LH.
(e) Connect the connector to the rear airbag sensor LH.
2. INSTALL DECK SIDE TRIM COVER LH
3. INSTALL DECK TRIM SIDE BOARD UPR LH
4. INSTALL LAP BELT OUTER ANCHOR COVER REAR NO. 1 SEAT
5. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
6. INSTALL REAR DOOR SCUFF PLATE LH
7. INSTALL DECK FLOOR BOX LH
8. INSTALL REAR FLOOR MAT SUPPORT PLATE REAR
9. INSTALL DECK BOARD ASSEMBLY
10. INSTALL TONNEAU COVER RETRACTOR SUB-ASSEMBLY
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. INSPECT SRS WARNING LIGHT
(a) Inspect the SRS warning light Diagnosis System.
