SUSPENSION CONTROL: SUSPENSION CONTROL ECU: REMOVAL

SUSPENSION CONTROL: SUSPENSION CONTROL ECU: REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE LH Removal

3. REMOVE COWL SIDE TRIM BOARD LH Removal

4. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 1 Removal

5. REMOVE INSTRUMENT PANEL FINISH PLATE Removal

6. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER Removal

7. REMOVE INSTRUMENT PANEL LOWER LH

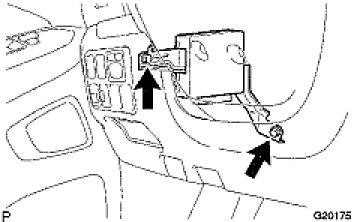

8. REMOVE SUSPENSION CONTROL ECU






(a) Disconnect the 3 suspension control ECU connectors.
(b) Remove the 2 bolts and the suspension control ECU.
